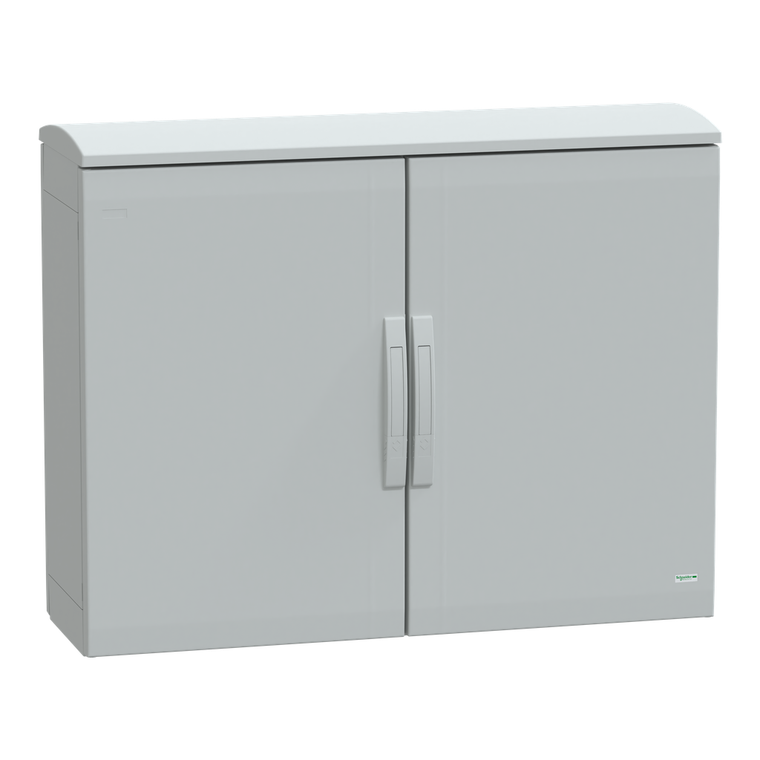

Schneider Electric NSYPLAT7103G 7035 Fs Pol Canopy 750X1000X320

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLAT7103G 7035 Fs Pol Canopy 750X1000X320

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLAT7103G

UPC:

3606480775475

MPN:

Condition:

New

Enclosure Nominal Depth:

320 mm

Ip Degree Of Protection:

IP44 IEC 60529 with ventilated canopy)

Product Name:

Thalassa PLA

Product Certifications:

Veritas

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Device Short Name:

PLAT

Material:

polyester reinforced with fibreglass

Enclosure Nominal Height:

750 mm

Color:

Gray RAL 7035)

Ambient Air Temperature For Storage:

-35-90 °C

Environmental Disclosure:

ENVPEP110505EN

Enclosure Nominal Width:

1000 mm

Enclosure Mounting:

floor-standing

Product Or Component Type:

suitable enclosure

Fire Resistance:

960 °C IEC 62208

Device Application:

multi-purpose

Door Type:

Solid front

Mercury Free:

Yes

Circularity Profile:

N/A

Rohs Exemption Information:

Yes

Number Of Doors:

2

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Body Type:

open top and sealed bottom part assembled with side parts

Electrical Insulation Class:

class II

Door Opening Side:

right and left 120 °)

Range:

Thalassa

Lock Type:

2 points handle lock, 5 mm double-bar

Sustainable Offer Status:

Green Premium product

Accessibility For Operation:

front || top || rear

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 canopy

Standards:

IEC 62208
