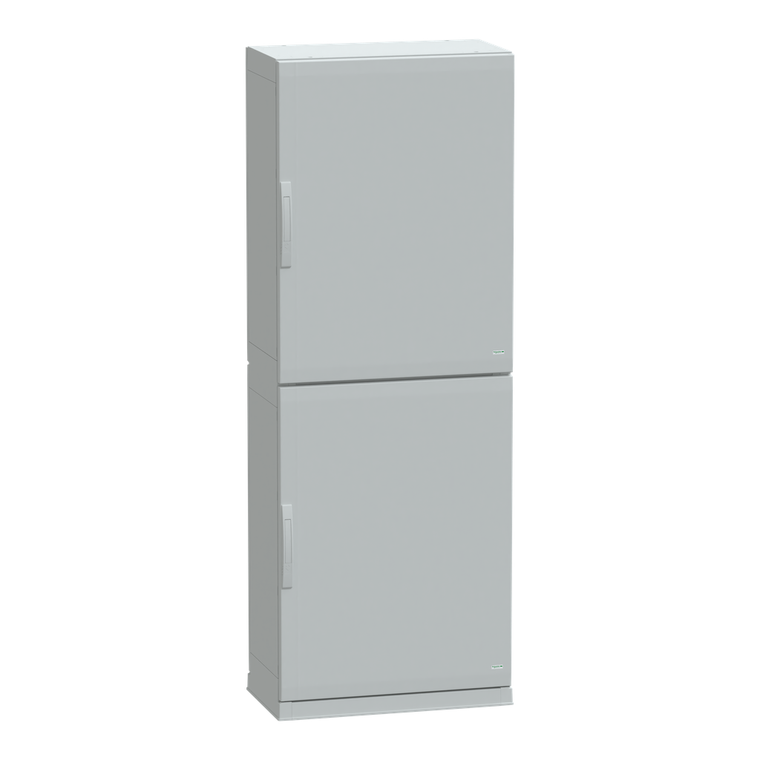

Schneider Electric NSYPLAZ2074G 7035 Fs Pol Plinth 2000X750X420

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLAZ2074G 7035 Fs Pol Plinth 2000X750X420

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLAZ2074G

UPC:

3.60649E+12

MPN:

Condition:

New

Color:

Gray RAL 7035)

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 plinth

Material:

polyester reinforced with fibreglass

Sustainable Offer Status:

Green Premium product

Accessibility For Operation:

front || bottom || rear

Body Type:

sealed top and open bottom part assembled with side parts

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Name:

Thalassa PLA

Environmental Disclosure:

ENVPEP110505EN

Enclosure Nominal Width:

750 mm

Enclosure Nominal Depth:

420 mm

Removable Parts:

door by hinges || rear panel by fixing element

Ip Degree Of Protection:

IP54 IEC 60529 plinth type open bottom)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Storage:

-35-90 °C

Lock Type:

4 points lock, handle with 5 mm double bar insert

Device Application:

multi-purpose

Enclosure Nominal Height:

2000 mm

Number Of Doors:

2

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

Veritas

Door Type:

Solid front

Door Opening Side:

right and left 120 °)

Range:

Thalassa

Standards:

IEC 62208

Fire Resistance:

960 °C IEC 62208

Mercury Free:

Yes

Circularity Profile:

N/A

Rohs Exemption Information:

Yes

Enclosure Mounting:

floor-standing

Product Or Component Type:

suitable enclosure

Device Short Name:

PLAZ

Electrical Insulation Class:

class II

Ik Degree Of Protection:

IK10 IEC 62262 plain door)
