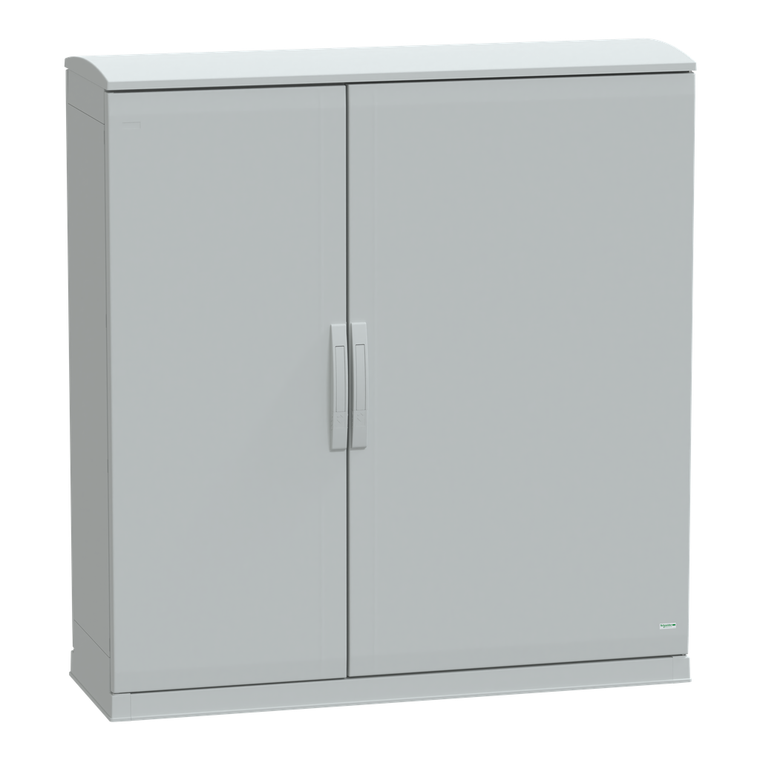

Schneider Electric NSYPLAZT12124G 7035 Pla Plin+Can1250X1250X420

SKU:

NSYPLAZT12124G

UPC:

3.60648E+12

MPN:

Condition:

New

Standards:

IEC 62208

Enclosure Nominal Width:

1250 mm

Door Opening Side:

right and left 180 °)

Product Name:

Thalassa PLA

Product Or Component Type:

suitable enclosure

Product Certifications:

Veritas

Ik Degree Of Protection:

IK10 IEC 62262 plain door)

Body Type:

open top and bottom part assembled with side parts

Mercury Free:

Yes

Device Short Name:

PLAZT

Ip Degree Of Protection:

IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)

Removable Parts:

door by hinges || rear panel by fixing element || canopy by fixing element

Enclosure Nominal Height:

1250 mm

Enclosure Mounting:

floor-standing

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Enclosure Nominal Depth:

420 mm

Color:

Gray RAL 7035)

Ambient Air Temperature For Storage:

-35-90 °C

Number Of Doors:

2

Lock Type:

4 points lock, handle with 5 mm double bar insert

Device Application:

multi-purpose

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Accessibility For Operation:

front || top || bottom || rear

Fire Resistance:

960 °C IEC 62208

Door Type:

Solid front

Environmental Disclosure:

ENVPEP110505EN

Device Composition:

1 top part || 1 bottom part || 2 side part || 2 door || 2 rear panel || 1 canopy || 1 plinth

Electrical Insulation Class:

class II

Sustainable Offer Status:

Green Premium product

Circularity Profile:

N/A

Range:

Thalassa

Material:

polyester reinforced with fibreglass
