Schneider Electric

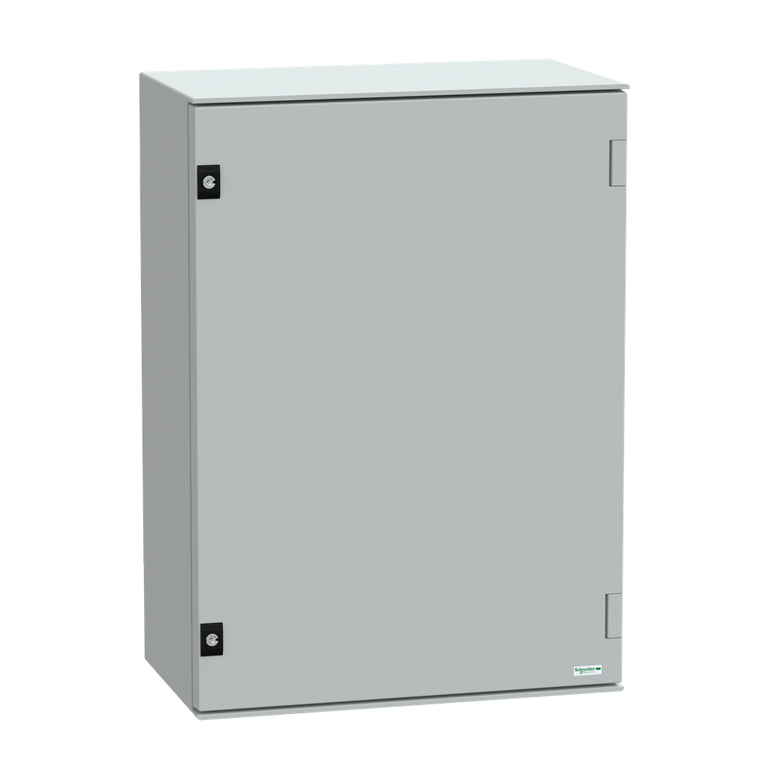

Schneider Electric NSYPLM75G 7035 Wm Pol Plm 747X536X300

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYPLM75G 7035 Wm Pol Plm 747X536X300

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLM75G

UPC:

3.60648E+12

MPN:

Condition:

New

Product Certifications:

UL

Mounting Plate Description:

without mounting plate

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Operation:

-40-80 °C

Color:

Gray RAL 7035)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Enclosure Mounting:

wall mounted

Device Composition:

1 body || 1 door || 2 lock

Electrical Insulation Class:

class II

Range:

Thalassa

Rohs Exemption Information:

Yes

Enclosure Nominal Width:

536 mm

Fire Resistance:

960 °C IEC 62208

Accessibility For Operation:

front

Device Short Name:

PLM

Removable Parts:

door by hinges

Enclosure Nominal Height:

747 mm

Standards:

IEC 62208 || NEMA classification 13 || NEMA classification 4X

Product Name:

Thalassa PLM

Material:

polyester reinforced with fibreglass

Device Application:

multi-purpose

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP110118EN

Ik Degree Of Protection:

IK10 IEC 62262

Mercury Free:

Yes

Lock Type:

3 mm double-bar lock

Ip Degree Of Protection:

IP66 IEC 60529

Product Or Component Type:

compact enclosure

Enclosure Nominal Depth:

300 mm

Door Type:

Solid

Sustainable Offer Status:

Green Premium product

Number Of Locks:

2

Circularity Profile:

N/A

Datasheet:

View
