Schneider Electric NSYPLM810G Landscape Plm 852X1056X35

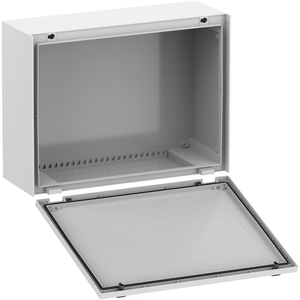

The Thalassa PLM landscape compact enclosure comes in grey colour and it's designed for multi-purpose application and photovoltaic (Solar). This compact enclosure is composed of body, door, lock. Featuring a removable door by cut hinges, comes without mounting plate. Has a built-in canopy, one piece moulded with notches in the rear. The compact enclosure is made of polyester reinforced with fibreglass, making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 1056 mm x (H) 852 mm x (D) 350 mm. The door type is plain, and the door opening side is down. Equipped with a 4 points lock, handle with 5 mm double bar insert lock type. It well satisfied the standard of IEC 62208, NEMA classification 13, NEMA classification 4X. This compact enclosure is BV, UL certified. This device is qualified as a green premium product, with minimal use of hazardous substances.
- Ambient Air Temperature For Operation:
- -40-80 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Name:
- Thalassa PLM landscape
- Device Composition:
- 1 body || 1 door || 1 lock
- Device Application:
- multi-purpose
- Removable Parts:
- door by cut hinges
- Ip Degree Of Protection:
- IP66 IEC 60529
- Door Opening Side:
- down
- Enclosure Nominal Height:
- 852 mm
- Circularity Profile:
- N/A
- Enclosure Nominal Depth:
- 350 mm
- Installation Direction:
- horizontal
- Product Certifications:
- UL || BV
- Device Short Name:
- PLM
- Sustainable Offer Status:
- Green Premium product
- Enclosure Nominal Width:
- 1056 mm
- Product Or Component Type:
- compact enclosure
- Standards:
- NEMA classification 13 || IEC 62208 || NEMA classification 4X
- Fire Resistance:
- 960 °C IEC 62208
- Lock Type:
- 4 points lock, handle with 5 mm double bar insert
- Rohs Exemption Information:
- Yes
- Ik Degree Of Protection:
- IK10 IEC 62262
- Accessibility For Operation:
- front
- Color:
- Gray RAL 7035)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Insulation Class:
- class II
- Enclosure Mounting:
- wall mounted
- Material:
- polyester reinforced with fibreglass
- Number Of Locks:
- 1
- Mounting Plate Description:
- without mounting plate
- Mercury Free:
- Yes
- Range:
- Thalassa
- Door Type:
- Solid
- Body Type:
- built-in canopy, on lateral side || one piece moulded with notches in the rear
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure:
- ENVPEP110118EN
