Schneider Electric

Schneider Electric NSYS3D121030D S3D H1200Xw1000Xd300 2 Pl. Doors

(No reviews yet) Write a Review
SKU:
NSYS3D121030D
UPC:
3606480160059
Condition:
New
Electromagnetic Compatibility:
electromagnetic field immunity test
Range:
Spacial
Type Of Gland Plate:
standard
Device Application:
multi-purpose
Product Or Component Type:
compact enclosure
Removable Parts:
door by hinges || cable gland plate by screws
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP55 IEC 60529
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Color:
Gray RAL 7035)
Standards:
IEC 62208
Door Type:
Solid
Material:
steel
Mounting Plate Description:
without mounting plate
Sustainable Offer Status:
Green Premium product
Surface Finish:
epoxy-polyester powder
Device Composition:
1 body || 2 cable gland plate || 1 lock || 2 door
Installation Accessory Type:
wall-mounting
Number Of Doors:
front face 2
Door Opening Side:
reversible 120 °)
Product Certifications:
BV || UL || LR || cUL || GL || DNV
Enclosure Nominal Height:
1200 mm
Accessibility For Operation:
front
Lock Type:
3 points lock, 3 mm double-bar
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ik Degree Of Protection:
IK10 IEC 62262
Variant Particularity:
single piece body || gutter-shaped front rail double sheet thickness
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Net Weight:
53 kg
Enclosure Nominal Width:
1000 mm
Mercury Free:
Yes
Circularity Profile:
N/A
Environmental Disclosure:
ENVPEP100104EN
Enclosure Nominal Depth:
300 mm
Product Name:
Spacial S3D
Warranty:
18 months
Brochure:
View
Datasheet:
View
$505.07

Description

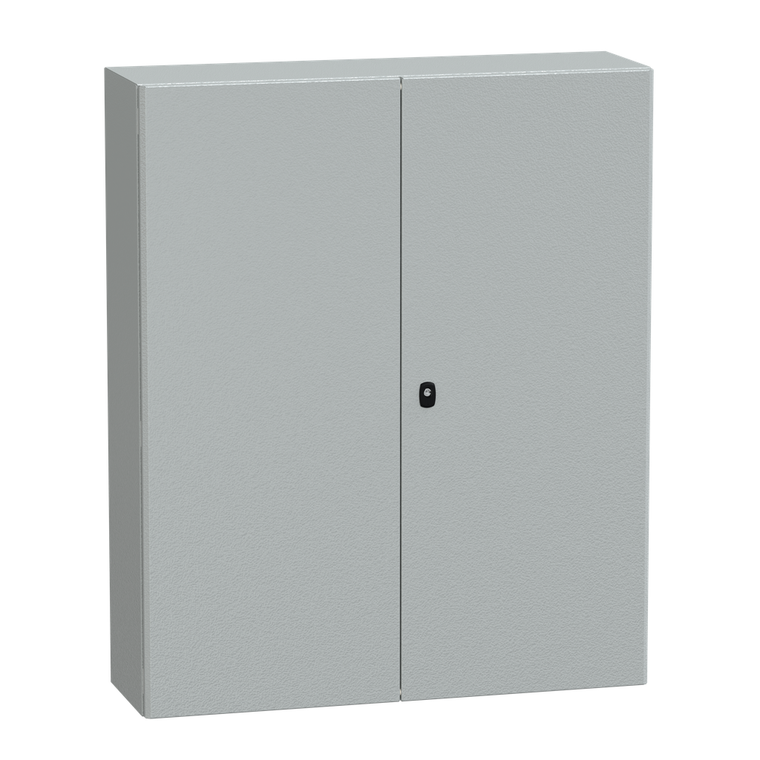

Spacial S3D wall mounted steel enclosure with 2 plain doors. 1200 x 1000 x 300 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 55, IK10, Grey RAL 7035. 2 cable gland plates included, standard. Extensive range of accessories. Packaging is reusable after assembly.
