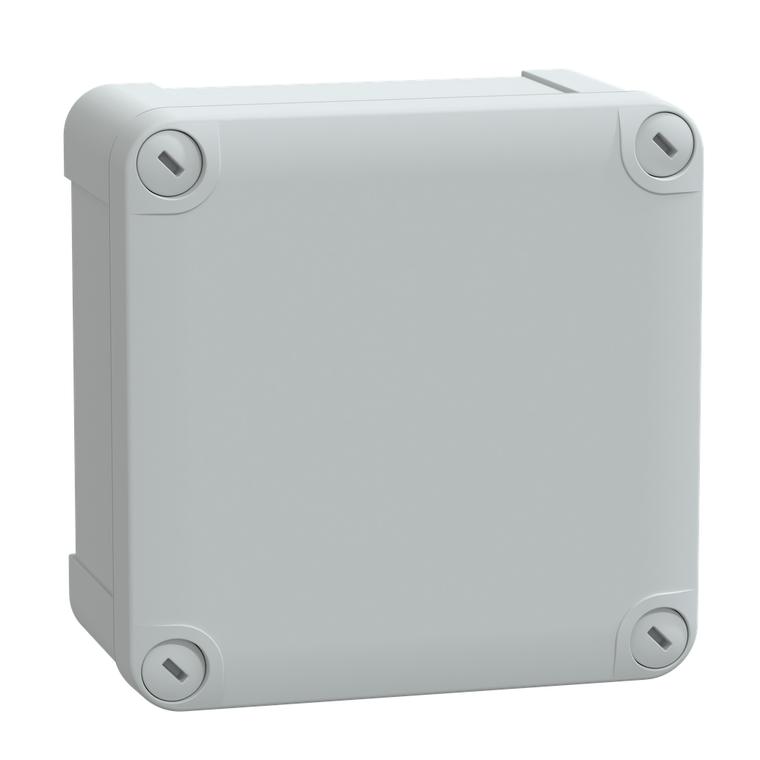

Schneider Electric NSYTBP11116 Pc Ind Box 116X116X62 Lo Pack of 5

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP11116 Pc Ind Box 116X116X62 Lo Pack of 5

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP11116

UPC:

3606480165610

MPN:

Condition:

New

Cover Fixing:

plastic screws

Range:

Thalassa

Internal Depth:

55 mm

Quantity Per Set:

set of 5

Lock Type:

captive screw flat outside sealed area

Mercury Free:

Yes

Color:

Gray RAL 7035)

Product Certifications:

TÜV || UL

Height:

116 mm

Circularity Profile:

ENVEOLI2012016EN

Product Name:

Thalassa TBP

Internal Width:

105 mm

Device Application:

multi-purpose

Net Weight:

0.171 kg

Device Composition:

1 body || 1 cover || 4 cover screw

Electrical Insulation Class:

class II

Type Of Front Cover:

low plain cover

Reach Free Of Svhc:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ik Degree Of Protection:

IK08 IEC 62262

Material:

polycarbonate

Depth:

62 mm

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Warranty:

18 months

Product Or Component Type:

industrial box

Internal Height:

105 mm

Environmental Disclosure:

ENVPEP2012016EN

Ambient Air Temperature For Storage:

-15-60 °C

Fire Resistance:

960 °C

Standards:

IEC 62208 || UL 508 A

Toxic Heavy Metal Free:

Yes

Width:

116 mm

Enclosure Mounting:

wall mounted

Body Type:

one piece moulded

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Removable Parts:

cover by captive screws

Ambient Air Temperature For Operation:

-25-80 °C
