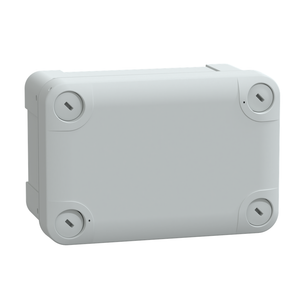

Schneider Electric NSYTBP1397T Pc Ind Box 138X93X72 Lo Tr Pack of 2

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP1397T Pc Ind Box 138X93X72 Lo Tr Pack of 2

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP1397T

UPC:

3606480165788

MPN:

Condition:

New

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Insulation Class:

class II

Product Certifications:

TÜV || UL

Removable Parts:

cover by captive screws

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

Fire Resistance:

960 °C

Mercury Free:

Yes

Quantity Per Set:

set of 2

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Lock Type:

captive screw flat outside sealed area

Height:

138 mm

Circularity Profile:

ENVEOLI2012016EN

Ambient Air Temperature For Storage:

-15-60 °C

Internal Height:

125 mm

Rohs Exemption Information:

Yes

Internal Depth:

65 mm

Device Composition:

1 body || 1 cover || 4 cover screw

Standards:

IEC 62208 || UL 508 A

Type Of Front Cover:

low transparent cover

Body Type:

one piece moulded

Device Application:

multi-purpose

Cover Fixing:

plastic screws

Sustainable Offer Status:

Green Premium product

Depth:

72 mm

Width:

93 mm

Warranty:

18 months

Material:

polycarbonate

Range:

Thalassa

Color:

Gray RAL 7035) || Transparent

Product Name:

Thalassa TBP

Toxic Heavy Metal Free:

Yes

Ambient Air Temperature For Operation:

-25-80 °C

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Product Or Component Type:

industrial box

Internal Width:

80 mm

Environmental Disclosure:

ENVPEP2012016EN

Net Weight:

0.23 kg

Reach Free Of Svhc:

Yes

Enclosure Mounting:

wall mounted

Ik Degree Of Protection:

IK08 IEC 62262
