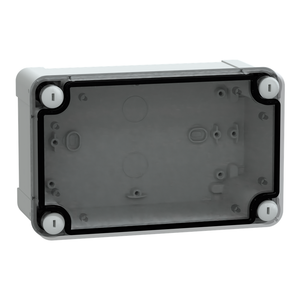

Schneider Electric NSYTBP19128T Pc Ind Box 192X121X87 Lo Tr Pack of 2

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP19128T Pc Ind Box 192X121X87 Lo Tr Pack of 2

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP19128T

UPC:

3.60648E+12

MPN:

Condition:

New

Standards:

IEC 62208 || UL 508 A

Fire Resistance:

960 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Body Type:

one piece moulded

Product Certifications:

TÜV || UL

Type Of Front Cover:

low transparent cover

Enclosure Mounting:

wall mounted

Electrical Insulation Class:

class II

Rohs Exemption Information:

Yes

Width:

121 mm

Environmental Disclosure:

ENVPEP2012016EN

Internal Width:

105 mm

Ambient Air Temperature For Storage:

-15-60 °C

Device Composition:

1 body || 1 cover || 4 cover screw

Reach Free Of Svhc:

Yes

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Cover Fixing:

plastic screws

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Net Weight:

0.38 kg

Product Or Component Type:

industrial box

Warranty:

18 months

Removable Parts:

cover by captive screws

Material:

polycarbonate

Ik Degree Of Protection:

IK08 IEC 62262

Toxic Heavy Metal Free:

Yes

Ambient Air Temperature For Operation:

-25-80 °C

Height:

192 mm

Circularity Profile:

ENVEOLI2012016EN

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

Range:

Thalassa

Quantity Per Set:

set of 2

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Depth:

87 mm

Color:

Gray RAL 7035) || Transparent

Lock Type:

captive screw flat outside sealed area

Mercury Free:

Yes

Device Application:

multi-purpose

Product Name:

Thalassa TBP

Internal Height:

175 mm

Internal Depth:

80 mm

Catalog:

View

Datasheet:

View
