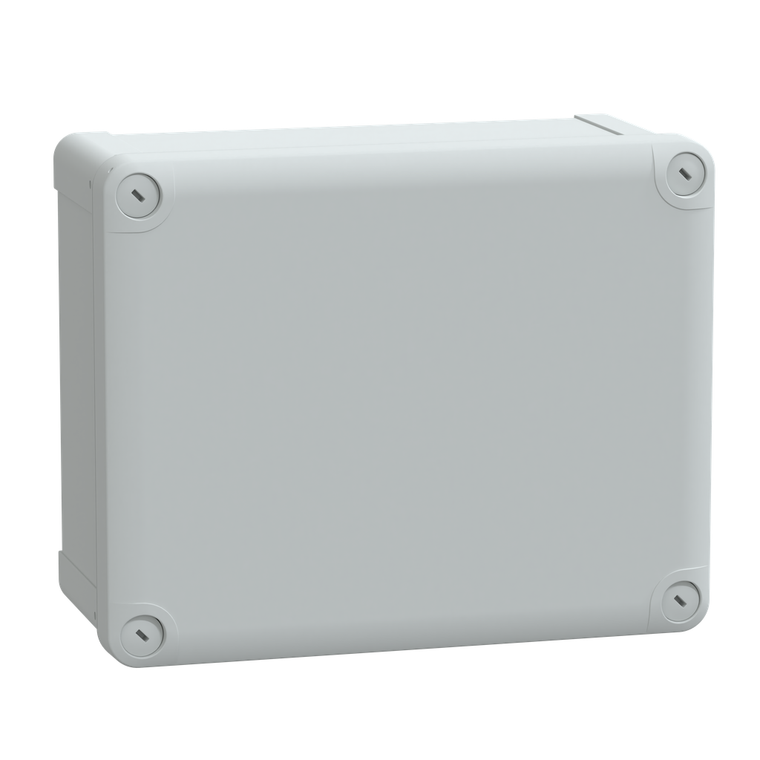

Schneider Electric NSYTBP241910H Pc Ind Box 241X192X105 Hi

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP241910H Pc Ind Box 241X192X105 Hi

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP241910H

UPC:

3606480165702

MPN:

Condition:

New

Material:

polycarbonate

Internal Width:

175 mm

Lock Type:

captive screw flat outside sealed area

Rohs Exemption Information:

Yes

Standards:

UL 508 A || IEC 62208

Enclosure Mounting:

wall mounted

Sustainable Offer Status:

Green Premium product

Color:

Gray RAL 7035)

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Body Type:

one piece moulded

Circularity Profile:

ENVEOLI2012016EN

Type Of Front Cover:

high plain cover

Range:

Thalassa

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Device Composition:

1 body || 1 cover || 4 cover screw

Width:

194 mm

Mercury Free:

Yes

Reach Free Of Svhc:

Yes

Removable Parts:

cover by captive screws

Electrical Insulation Class:

class II

Internal Height:

225 mm

Toxic Heavy Metal Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Device Application:

multi-purpose

Fire Resistance:

960 °C

Product Name:

Thalassa TBP

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

Ik Degree Of Protection:

IK08 IEC 62262

Ambient Air Temperature For Operation:

-25-80 °C

Depth:

107 mm

Internal Depth:

100 mm

Product Or Component Type:

industrial box

Warranty:

18 months

Environmental Disclosure:

ENVPEP2012016EN

Net Weight:

0.8 kg

Cover Fixing:

plastic screws

Product Certifications:

TÜV || UL

Height:

241 mm

Ambient Air Temperature For Storage:

-15-60 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Datasheet:

View
