Schneider Electric NSYTRAL410GR Plug-In Bridge,10Points For 4Mm2 Termin

Schneider Electric NSYTRAL410GR Plug-In Bridge,10Points For 4Mm2 Termin

Schneider Electric
SKU:
NSYTRAL410GR
|
UPC:
3606480534195
Availability:
Contact us to confirm availability and lead times.
$4.40
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

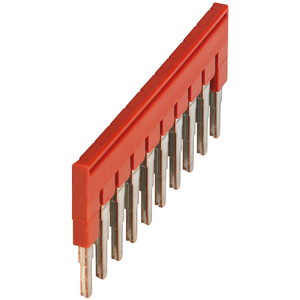

The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. A plug-in bridge jumper is used to connect all of the terminal blocks electrically. This plug-in jumper will connect ten 6.2 mm wide terminal blocks. Jumper has a grey cover. Each jumper wieghs 0.36 oz. The jumpers are sold in sets of ten jumpers per package.
Additional Information
Sustainable Offer Status:
Green Premium product
Number Of Measurement Input:
2 || 6 || 3 || 4 || 1
Halogen Content Performance:
Halogen free plastic parts product
Number Of Ways:
10 ways
Device Short Name:
TRA
Mercury Free:
Yes
Color:
Gray
Product Name:
Linergy TR
Net Weight:
10.1 g
Toxic Heavy Metal Free:
Yes
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Number Of Terminals:
3 || 4 || 2
Product Or Component Type:
plug-in bridge
Product Compatibility:
TRV screw terminal terminal block || TRP push-in terminal block || TRR spring terminal terminal block || TRH IDC terminal block
Reach Free Of Svhc:
Yes
Range:
Linergy
Quantity Per Set:
set of 10
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Accessory / Separate Part Category:
connection accessory
Cable Cross Section:
4-4 mm²
Circularity Profile:
N/A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Environmental Disclosure:
ENVPEP1304013EN
Catalog:
View
Datasheet:
View
