Schneider Electric

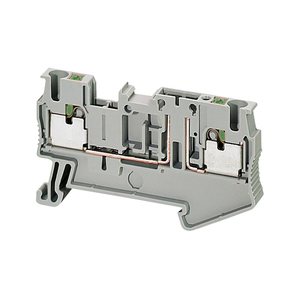

Schneider Electric NSYTRP42TB Push-In Terminal, Basic Disconnect Termi

SKU:

NSYTRP42TB

UPC:

3606480533396

MPN:

Condition:

New

Wire Stripping Length:

10 mm

Product Or Component Type:

terminal block

Tool Type:

disconnection flat screwdriver || connection without tool

Product Name:

Linergy TR

Fuse Size:

5 x 20 mm || 6 x 32 mm

Toxic Heavy Metal Free:

Yes

Mounting Mode:

clip-on

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Width:

6.2 mm

Number Of Terminals:

2

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Terminal Block Type:

removable carrier disconnect

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Color:

Gray

Height:

36.5 mm

Sustainable Offer Status:

Green Premium product

Device Short Name:

TRP

Range:

Linergy

Connections - Terminals:

1 x push-in upstream || 1 x push-in downstream

[Ue] Rated Operational Voltage:

400 V EN/IEC 60947-7-1 || 300 V cURus || 300 V CSA

Reach Free Of Svhc:

Yes

Mercury Free:

Yes

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Material:

polyamide 6/6: insulating case

Number Of Measurement Input:

2

Line Rated Current:

20-20 A EN/IEC 60947-7-1 || 20-20 A cURus || 20-20 A CSA

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Certifications:

CSA || EAC || cURus || VDE || GL

Product Compatibility:

Spacial enclosures

Dielectric Constant:

3.7 at 1 MHz

Quantity Per Set:

set of 50

Length:

56 mm

Flame Retardance:

V0 0.8 mm UL 94

Halogen Content Performance:

Halogen free plastic parts product

Nominal Cross Section:

4 mm²

Net Weight:

9.3 g

Circularity Profile:

N/A

Environmental Disclosure:

ENVPEP2309019EN

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Dielectric Strength:

1000 V IEC 60243-1

Associated Connection Component:

diode || cylindrical fuse || blade

Rohs Exemption Information:

Yes

Connection Position:

top

Cable Cross Section:

0.2-4 mm², flexible without cable end || 0.2-6 mm², solid

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Terminal Block Level:

1

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
