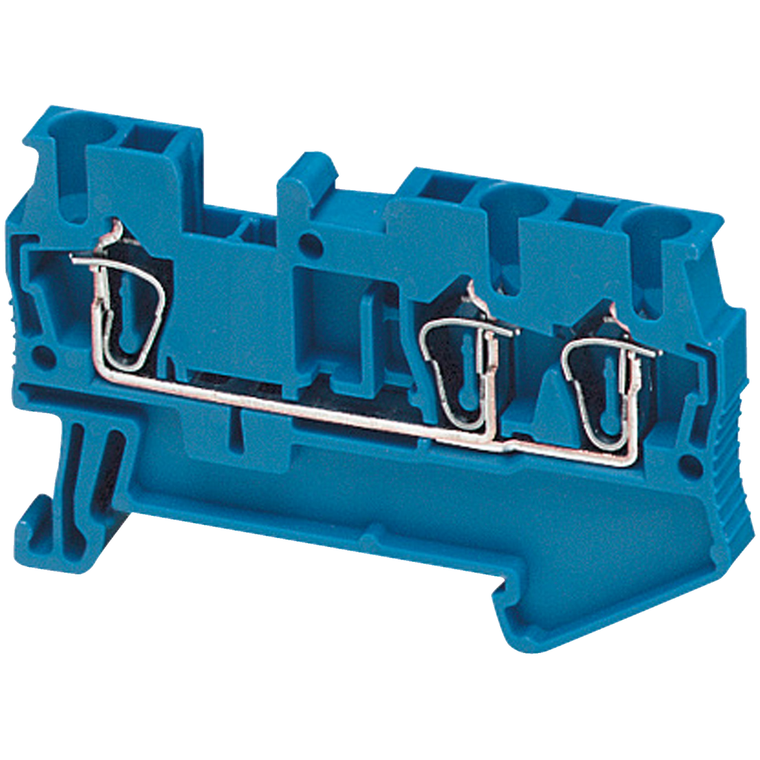

Schneider Electric NSYTRR23BL Spring Terminal, Feed Through, 3 Points, Pack of 50

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTRR23BL Spring Terminal, Feed Through, 3 Points, Pack of 50

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTRR23BL

UPC:

3606480532559

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Dielectric Constant:

3.7 at 1 MHz

Product Certifications:

IEC-Ex || cURus || GL || LR || CSA || EAC || ATEX || DNV || VDE

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Device Short Name:

TRR

Number Of Terminals:

3

Wire Stripping Length:

10 mm

Toxic Heavy Metal Free:

Yes

Flame Retardance:

V0 0.8 mm UL 94

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Number Of Measurement Input:

2

Accessory / Separate Part Category:

connection accessory

Line Rated Current:

20-20 A CSA || 20-20 A cURus || 24-24 A EN/IEC 60947-7-1

Material:

polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring

Net Weight:

7 g

Height:

36.5 mm

Halogen Content Performance:

Halogen free plastic parts product

Terminal Block Level:

1

Mounting Mode:

clip-on

Range:

Linergy

Connections - Terminals:

1 x spring terminal upstream || 2 x spring terminal downstream

Product Name:

Linergy TR

Reach Free Of Svhc:

Yes

Quantity Per Set:

set of 50

Tool Type:

connection flat screwdriver || disconnection flat screwdriver

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Product Compatibility:

Spacial enclosures

Warranty:

18 months

Product Or Component Type:

terminal block

Terminal Block Type:

passthrough

Circularity Profile:

N/A

[Ue] Rated Operational Voltage:

600 V CSA || 800 V EN/IEC 60947-7-1 || 600 V cURus

Sustainable Offer Status:

Green Premium product

Nominal Cross Section:

2.5 mm²

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Width:

5.2 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Length:

60.5 mm

Connection Position:

top

Mercury Free:

Yes

Dielectric Strength:

1000 V IEC 60243-1

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Color:

Blue

Environmental Disclosure:

ENVPEP2309017EN

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Cable Cross Section:

0.08-2.5 mm², flexible without cable end || 0.08-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.08-4 mm², solid without cable end
