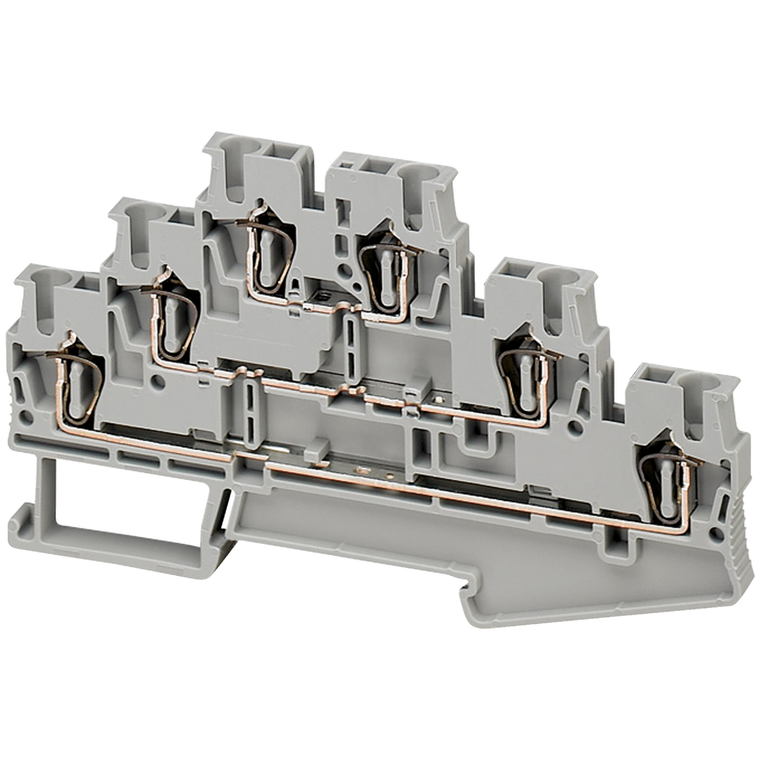

Schneider Electric NSYTRR26T Spring Terminal,

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTRR26T Spring Terminal,

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTRR26T

UPC:

3606480532658

MPN:

Condition:

New

Accessory / Separate Part Category:

connection accessory

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Line Rated Current:

20-20 A CSA || 20-20 A EN/IEC 60947-7-1 || 20-20 A cURus

Nominal Cross Section:

2.5 mm²

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Product Certifications:

EAC || LR || GL || VDE || CSA || cURus

Connections - Terminals:

1 x spring terminal upstream || 1 x spring terminal downstream

Tool Type:

connection flat screwdriver || disconnection flat screwdriver

Terminal Block Type:

passthrough

Device Short Name:

TRR

Toxic Heavy Metal Free:

Yes

[Ue] Rated Operational Voltage:

500 V EN/IEC 60947-7-1 || 300 V CSA || 600 V cURus

Quantity Per Set:

set of 50

Halogen Content Performance:

Halogen free plastic parts product

Environmental Disclosure:

ENVPEP2309017EN

Rohs Exemption Information:

Yes

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Range:

Linergy

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Mercury Free:

Yes

Length:

99.5 mm

Reach Free Of Svhc:

Yes

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Name:

Linergy TR

Mounting Mode:

clip-on

Product Or Component Type:

terminal block

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Material:

polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring

Wire Stripping Length:

10 mm

Product Compatibility:

Spacial enclosures

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Dielectric Strength:

1000 V IEC 60243-1

Flame Retardance:

V0 0.8 mm UL 94

Cable Cross Section:

0.08-2.5 mm², flexible without cable end || 0.08-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.08-4 mm², solid without cable end

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Height:

58 mm

Net Weight:

18 g

Color:

Gray

Number Of Terminals:

2

Terminal Block Level:

3

Connection Position:

top

Width:

5.2 mm

Number Of Measurement Input:

3

Warranty:

18 months

Dielectric Constant:

3.7 at 1 MHz
