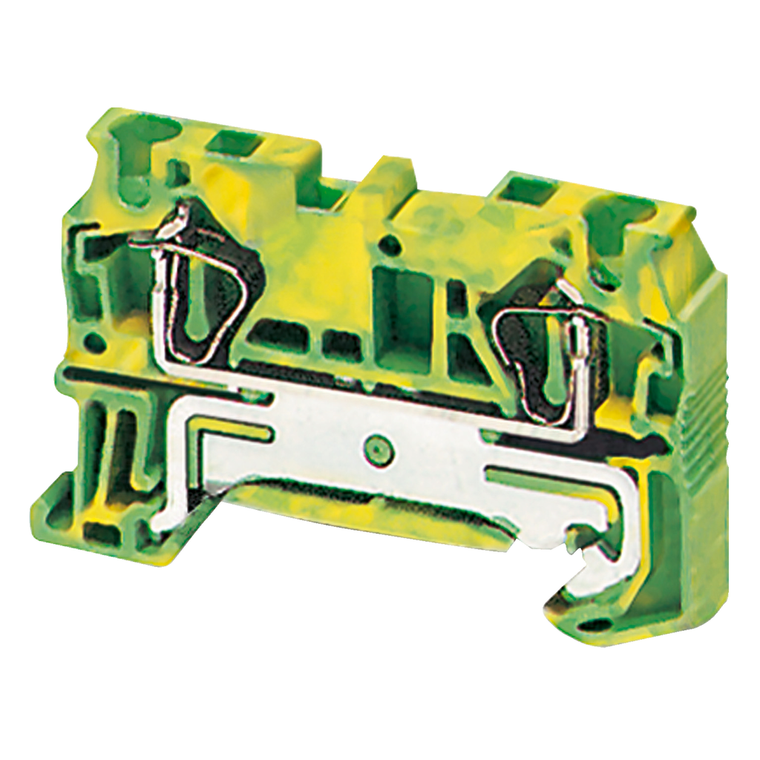

Schneider Electric NSYTRR42PE Spring Terminal, Protective Earth, 2 Poi Pack of 50
Schneider Electric
$396.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 4 mm² nominal cross section. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
- Number Of Terminals:
- 2
- Halogen Content Performance:
- Halogen free plastic parts product
- Surface Resistance:
- 1000 G⦠IEC 60093 || 1000 G⦠VDE 0303-T30
- Reach Free Of Svhc:
- Yes
- Quantity Per Set:
- set of 50
- Rohs Exemption Information:
- Yes
- Number Of Measurement Input:
- 2
- Resistivity:
- 10000 Mâ¦.m IEC 60093 || 10000 Mâ¦.m VDE 0303-T30
- Connection Position:
- top
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Material:
- polyamide 6/6: insulating case
- Color:
- green-yellow
- Tool Type:
- connection flat screwdriver || disconnection flat screwdriver
- Range Compatibility:
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Product Certifications:
- cURus || LR || GL || IEC-Ex || DNV || EAC || CSA || ATEX || VDE
- Ambient Air Temperature For Operation:
- -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
- Product Compatibility:
- Spacial enclosures
- Wire Stripping Length:
- 10 mm
- Mounting Mode:
- clip-on
- Terminal Block Type:
- protective earth
- Dielectric Loss:
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Cable Cross Section:
- 0.08-4 mm², solid || 0.2-4 mm², flexible with cable end || 0.08-4 mm², flexible without cable end
- Width:
- 6.2 mm
- Environmental Disclosure:
- ENVPEP2309021EN
- Flame Retardance:
- V0 0.8 mm UL 94
- Terminal Block Level:
- 1
- Range:
- Linergy
- Toxic Heavy Metal Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Length:
- 56 mm
- Device Short Name:
- TRR
- Dielectric Strength:
- 1000 V IEC 60243-1
- Nominal Cross Section:
- 4 mm²
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Dielectric Constant:
- 3.7 at 1 MHz
- Circularity Profile:
- N/A
- Net Weight:
- 12.7 g
- Product Name:
- Linergy TR
- Product Or Component Type:
- terminal block
- Mercury Free:
- Yes
- Creep Resistance:
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
- Height:
- 36.5 mm
- Connections - Terminals:
- 1 x spring terminal upstream || 1 x spring terminal downstream
