Schneider Electric NSYTRV162SF Screw Terminal, Fused, Screw Cap, For 5X

Schneider Electric NSYTRV162SF Screw Terminal, Fused, Screw Cap, For 5X Pack of 50

Schneider Electric
SKU:
NSYTRV162SF
|
UPC:
3606480532320
Availability:
Factory stock
$689.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

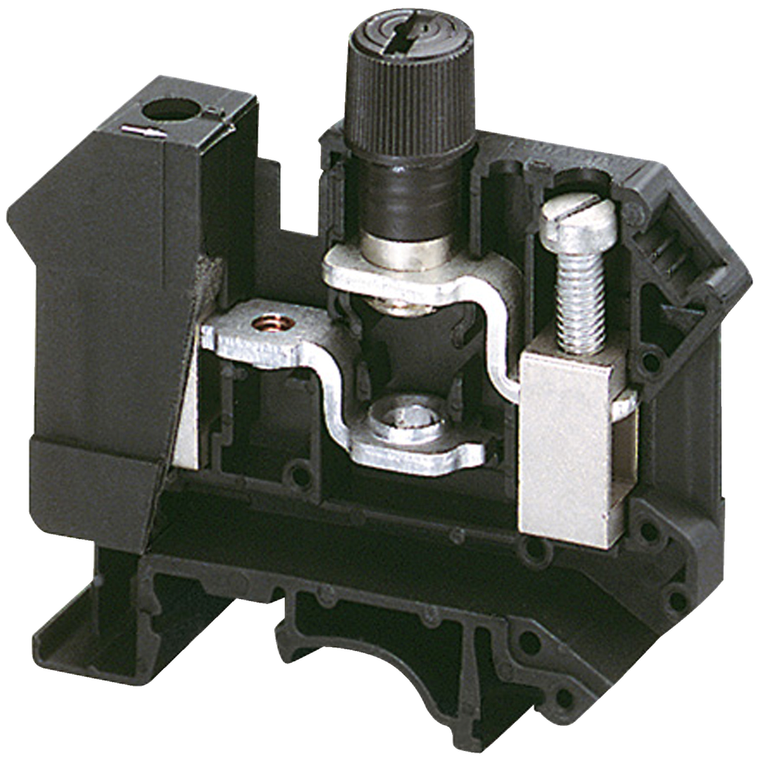

Linergy TR is terminal block for Linergy. It belongs to linergy fixed carrier terminal block with 16 mm² nominal cross section. The rated operational voltage is 300V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 10A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has black surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, DNV, LR, EAC). It is compliant with Green Premium (RoHS/REACH).
Additional Information
Product Name:
TR
Product Or Component Type:
terminal block
Associated Connection Component:
cylindrical fuse
Device Short Name:
TRV
Number Of Measurement Input:
0
Number Of Terminals:
2
Device Application:
protection
Dielectric Constant:
3.7 at 1 MHz
Dielectric Loss:
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Net Weight:
33.8 g
Height:
57.2 mm
Fuse Size:
5 x 20 mm
Tool Type:
connection screwdriver || disconnection screwdriver
Dielectric Strength:
1000 V IEC 60243-1
Product Certifications:
EAC || DNV || cURus || CSA || LR
Tightening Torque:
1.5-1.8 N.m
Material:
polyamide 6/6: insulating case
Wire Stripping Length:
11 mm
Halogen Content Performance:
Halogen free plastic parts product
Product Compatibility:
Spacial enclosures
Creep Resistance:
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Connection Position:
sideways
Warranty:
18 months
Range:
Linergy
Resistivity:
10000 Ω.cm IEC 60093 || 10000 Ω.cm VDE 0303-T30
Cable Cross Section:
1.5-16 mm², flexible with cable end || 0.08-2.5 mm², flexible without cable end || 0.5-16 mm², solid without cable end
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Ue] Rated Operational Voltage:
500 V EN/IEC 60947-7-1 || 300 V cURus || 300 V CSA
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive:
Compliant with Exemptions
Line Rated Current:
10-10 A EN/IEC 60947-7-1 || 20-20 A cURus || 20-20 A CSA
Circularity Profile:
N/A
Surface Resistance:
1000 MOhm IEC 60093 || 1000 MOhm VDE 0303-T30
Connections - Terminals:
1 x screw terminal upstream || 1 x screw terminal downstream
Terminal Block Level:
1
Color:
Black
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP2309018EN
Quantity Per Set:
set of 50
Length:
62 mm
Flame Retardance:
V0 0.8 mm UL 94
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mounting Mode:
clip-on
Width:
12 mm
Terminal Block Type:
fixed carrier
Nominal Cross Section:
16 mm²
Ambient Air Temperature For Operation:
-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Range Compatibility:
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Sustainable Offer Status:
Green Premium product
