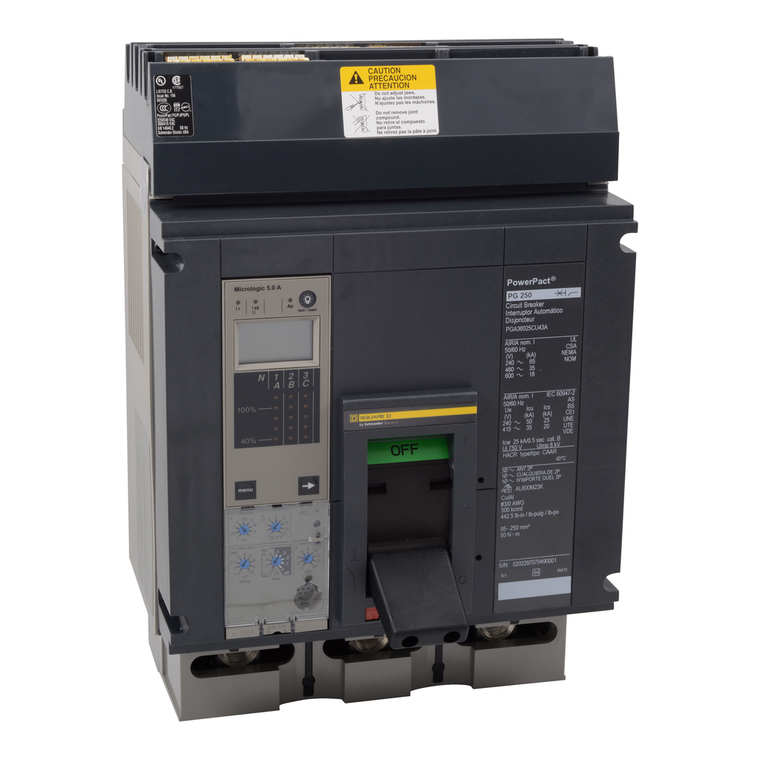

Schneider Electric PGA36120U41A Circuit breaker, PowerPacT P, 1200A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.0A, 80%, ABC

Schneider Electric PGA36120U41A Circuit breaker, PowerPacT P, 1200A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.0A, 80%, ABC

Schneider Electric
SKU:
PGA36120U41A
$21,642.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 3.0A trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Terminal Identifier:
AL1200P25K
Length:
30 mm
Pvc Free:
Yes
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Trip Unit Technology:
electronic, ammeter, MicroLogic 3.0 A, LI
Electrical Connection:
I-Line connection, line || lugs, load
Depth:
8.05 in
Environmental Disclosure:
ENVPEP2206033EN
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Height:
16.16 in
Rohs Exemption Information:
Yes
Control Type:
toggle
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pollution Degree:
3 IEC 60947-1
Trip Unit Name:
MicroLogic 3.0 A
Ambient Air Temperature For Operation:
-25-70°C
Long Time Pick-Up Adjustment Range:
0.4...1 x Ir
Mounting Support:
bracket
Poles Description:
3P
Warranty:
18 months
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Device Application:
distribution
Eu Rohs Directive:
Compliant with Exemptions
Ambient Air Temperature For Storage:
-50-85°C
Wire Stripping Length:
30 mm
Mounting Height:
9 in
Line Rated Current:
1200-1200 A
Circuit Breaker Application:
HACR rated
Tightening Torque:
50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
Quality Labels:
CE
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Phase Connection:
ABC
Awg Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Continuous Current Rating:
0.8
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Net Weight:
32 lb(US)
Product Certifications:
UL || CSA || NOM
Circularity Profile:
ENVEOLI2206033EN
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Network Frequency:
50/60 Hz
Ip Degree Of Protection:
front cover IP40
Quantity Per Set:
1
Weight:
32 lb(US)
Height:
9 in
Local Signaling:
overload 1 1 LED amber) || 1 flag green) || trip causes 4 trip indicator red)
