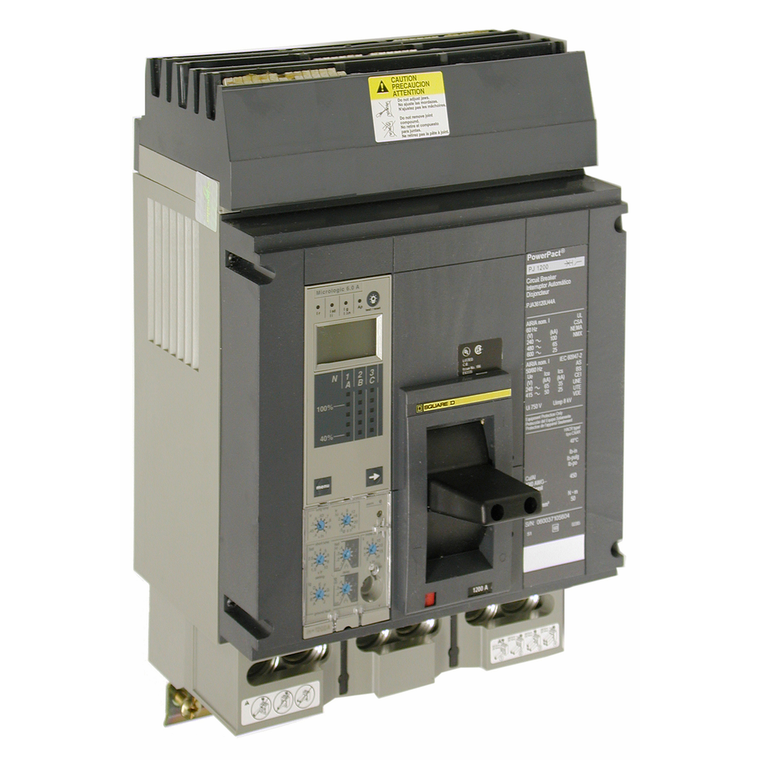

Schneider Electric PJA36100U64AE1 Circuit breaker, PowerPacT P, 1000A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 6.0P, 80%, ABC, modbus
PowerPacTÂ P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Power with a 6.0P trip unit and an LSIG function with Modbus communications. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Ambient Air Temperature For Storage:
- -50-85°C
- Pollution Degree:
- 3 IEC 60947-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Compliant with Exemptions
- Trip Unit Name:
- MicroLogic 6.0 P
- Mounting Mode:
- I-Line bracket)
- Mounting Height:
- 9 in
- Tightening Torque:
- 50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
- Environmental Disclosure:
- ENVPEP2206033EN
- Pvc Free:
- Yes
- Circuit Breaker Application:
- HACR rated
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz UL 489
- Warranty:
- 18 months
- Mounting Support:
- bracket
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Awg Gauge:
- 4 x AWG 3/0...500 kcmil aluminium/copper
- Poles Description:
- 3P
- Line Rated Current:
- 1000-1000 A
- Length:
- 30 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Terminal Identifier:
- AL1200P25K
- Width:
- 8.27 in
- Accessory / Separate Part Type:
- Modbus connecting cable
- Sustainable Offer Status:
- Green Premium product
- Height:
- 16.16 in
- Quantity Per Set:
- 1
- Range:
- PowerPact
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Ambient Air Temperature For Operation:
- -25-70°C
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Rohs Exemption Information:
- Yes
- Device Application:
- distribution
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Wire Stripping Length:
- 30 mm
- Local Signaling:
- 1 trip indicator green)
- Height:
- 9 in
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
- [Ics] Rated Service Breaking Capacity:
- 35 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Breaking Capacity Code:
- J
- Weight:
- 32 lb(US)
- Electrical Connection:
- I-Line connection, line || lugs, load
- Country of Origin:
- Italy
- Product Or Component Type:
- circuit breaker
- Long Time Pick-Up Adjustment Range:
- 0.4...1 x Ir
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Control Type:
- toggle
- Communication Interface:
- Modbus
- Net Weight:
- 32 lb(US)
- Product Name:
- PowerPact P
- Circularity Profile:
- ENVEOLI2206033EN
