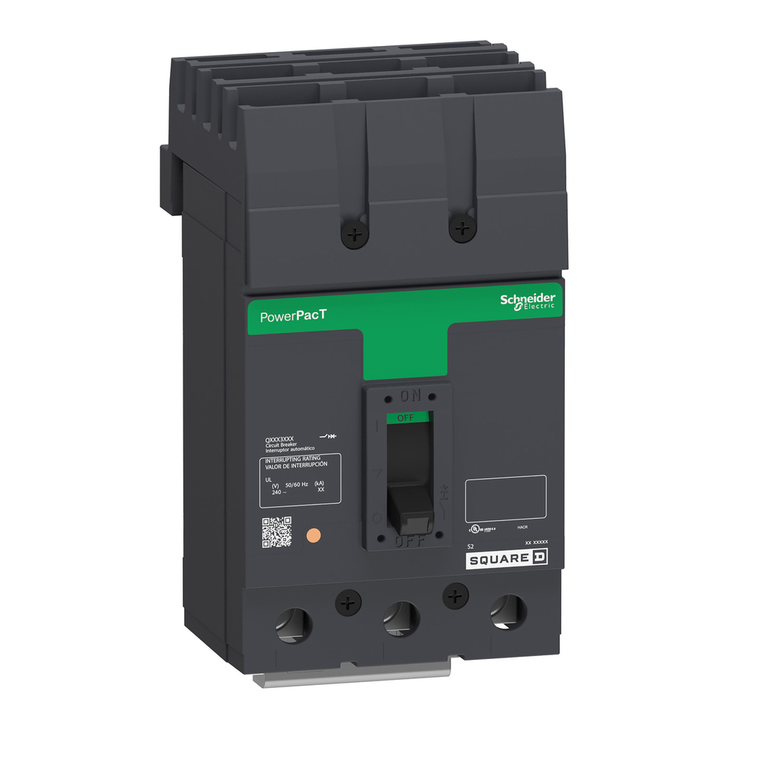

Schneider Electric QDA322256 Circuit breaker, PowerPacT Q, 225A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, CBA
Schneider Electric
$3,103.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QDA322256 Circuit breaker, PowerPacT Q, 225A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, CBA
PowerPacTÂ Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 225A, 3 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with a CBA phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
- Poles Description:
- 3P
- Local Signaling:
- 1 trip indicator green)
- Magnetic Hold Current:
- 1200 A
- Rohs Exemption Information:
- Yes
- Magnetic Tripping Current:
- 2400-2400 A
- Device Application:
- distribution
- Phase Connection:
- CBA
- Line Rated Current:
- 225-225 A
- Wire Stripping Length:
- 22 mm
- Mounting Mode:
- I-Line bracket)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Name:
- PowerPact Q
- Mounting Support:
- bracket
- Eu Rohs Directive:
- Compliant with Exemptions
- Utilisation Category:
- category A
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000
- Depth:
- 3.93 in
- Range:
- PowerPact
- Electrical Connection:
- I-Line connection, line || lugs, load
- Product Or Component Type:
- circuit breaker
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV UL
- Mounting Height:
- 4.5 in
- Height:
- 6.47 in
- Product Certifications:
- UL || CSA || NOM
- Breaking Capacity:
- 25 kA 120/208 V AC 50/60 Hz UL || 25 kA 240 V AC 50/60 Hz UL
- Halogen Content Performance:
- Halogen free product
- Mechanical Durability:
- 1000 cycles loaded || 5000 cycles no load
- Network Frequency:
- 50/60 Hz
- Trip Unit Technology:
- thermal-magnetic
- Length:
- 22 mm
- Sustainable Offer Status:
- Green Premium product
- Tightening Torque:
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Control Type:
- operating handle
- Warranty:
- 18 months
- Circularity Profile:
- N/A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Circuit Breaker Application:
- HACR rated
- Breaking Capacity Code:
- D
- Ambient Air Temperature For Operation:
- 40-70°C
- Country of Origin:
- Mexico
- Height:
- 4.5 in
- Mercury Free:
- Yes
- Continuous Current Rating:
- 0.8
- Pvc Free:
- Yes
- Environmental Disclosure:
- ENVPEP2311048EN
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL
