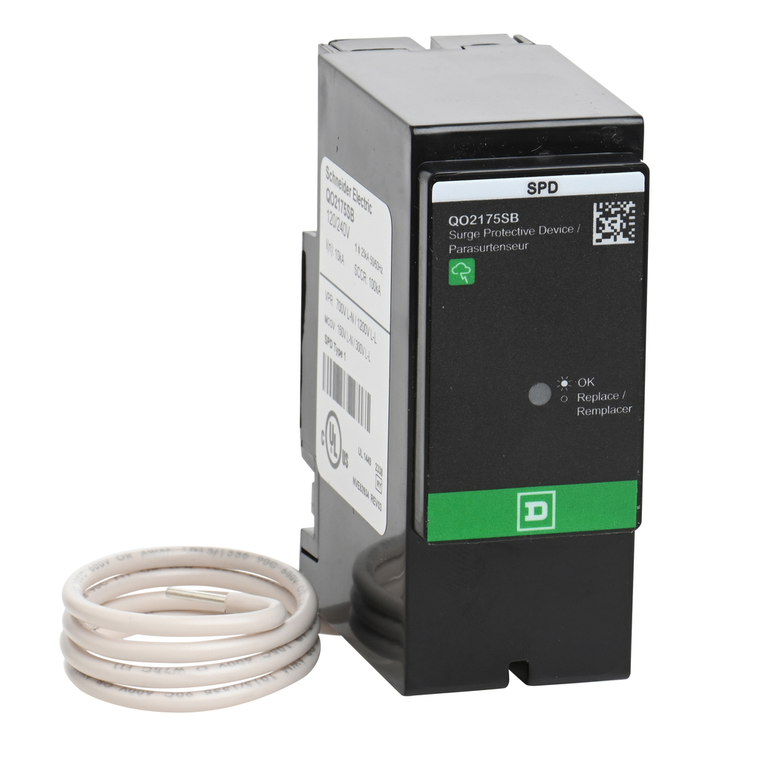

Schneider Electric QO2175SB Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1

Schneider Electric QO2175SB Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1

Schneider Electric
SKU:
QO2175SB
$159.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. This Surgebreaker is a secondary surge arrestor for QO load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 1 indoor rating. This secondary surge protector is rated at 5 kA and has a SCCR of 22.5 kA. It has a plug on design and requires two pole positions. The LED indicator indicates operational status. The QO Surgebreaker is CSA certified ans UL listed
Additional Information
Eu Rohs Directive:
Compliant with Exemptions
Product Or Component Type:
surge protection device
Nominal Discharge Current:
10 kA
Warranty:
3 Years
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP2002007EN
Surge Current:
25 kA
Input Voltage:
700 V L-N || 1500 V L-L
Nema Degree Of Protection:
NEMA 2
Local Signaling:
1 LED green normal operation
Range Of Product:
Surge Breaker || QO
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Country of Origin:
United States
Mercury Free:
Yes
Product Destination:
load center QO
[Ue] Rated Operational Voltage:
120/240 V AC
Circularity Profile:
ENVEOLI2002007EN
Depth:
2.6 in
Protection Type:
thermal fuse
Standards:
UL 1449 || CSA C22.2
Product Certifications:
cULus
Ambient Air Temperature For Operation:
-20-65°C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Wiring Configuration:
3-wire
[Uc] Maximum Continuous Operating Voltage:
150 V || 300 V
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Power Consumption In W:
500 mW
Short-Circuit Protection:
100 kA
Response Time:
< 50 ns
Phase:
1 phase
