Schneider Electric RE17RBMU Timer Func B 1C O 24Vac Dc 240Vac
Schneider Electric
$52.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RE17RBMU Timer Func B 1C O 24Vac Dc 240Vac

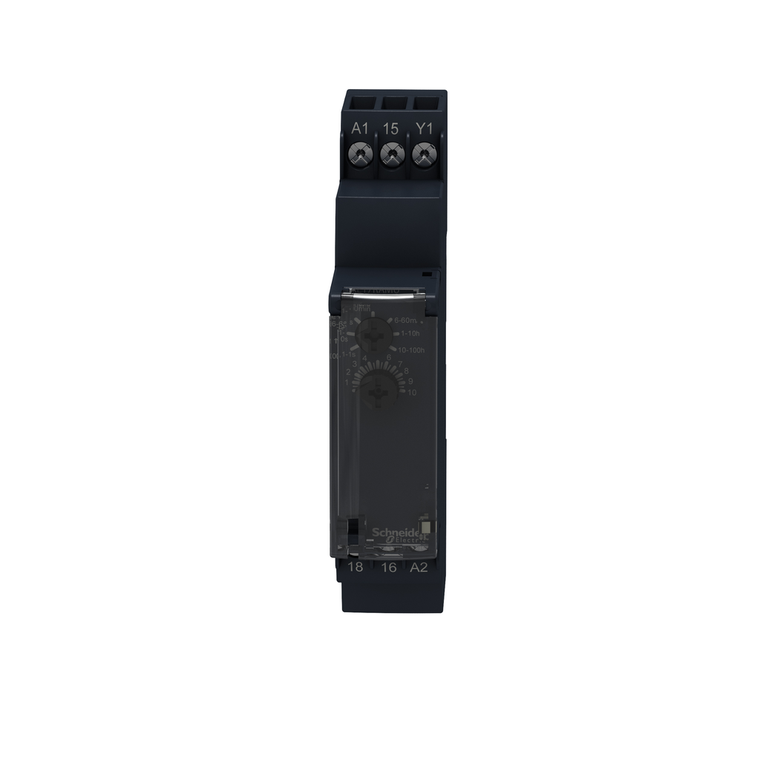

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24V DC, 24V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
- Marking:
- CE
- Electrical Durability:
- 100000 cycles resistive 8 A 250 V AC
- Time Delay Range:
- 10...100 h || 1...10 min || 6...60 min || 1...10 s || 6...60 s || 1...10 h || 0.1...1 s
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2/50 µs
- Discrete Output Type:
- relay
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- On-Load Factor:
- 1
- Ambient Air Temperature For Operation:
- -20-60 °C
- Breaking Capacity:
- 2000 VA
- Net Weight:
- 0.07 kg
- Height:
- 90 mm
- Reset Time:
- 120 ms on de-energisation typical
- Width:
- 17.5 mm
- Sustainable Offer Status:
- Green Premium product
- Maximum Delay Response:
- 100 ms
- Maximum Power Consumption In W:
- 0.6 W 24 V DC
- Input Voltage:
- 10 V
- Depth:
- 72 mm
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- Mercury Free:
- Yes
- Functionality:
- pulse signal
- Nominal Output Current:
- 0.333333333333333
- [Us] Rated Supply Voltage:
- 24...240 V AC 50/60 Hz || 24 V DC
- Standards:
- 2006/95/EC || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61812-1 || IEC 61000-6-1 || 2004/108/EC
- Housing Material:
- self-extinguishing
- China Rohs Regulation:
- X
- Contacts Type And Composition:
- 1 C/O
- Ambient Air Temperature For Storage:
- -30-60 °C
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Product Or Component Type:
- single function relay
- Operating Rate In Hz:
- 10 Hz
- Ip Degree Of Protection:
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
- Power Consumption In Va:
- 0-32 VA 240 V AC
- Time Delay Type:
- B
- Relative Humidity:
- 93-93 % without condensation IEC 60068-2-30
- Connections - Terminals:
- screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Device Short Name:
- RE17R
- Creepage Distance:
- 4 kV/3 IEC 60664-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Immunity To Microbreaks:
- 20 ms
- Local Signalling:
- LED indicator on steady: relay energised, no timing in progress || LED indicator 80 % ON and 20 % OFF flashing: timing in progress || LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
- Time Delay Type:
- interval
- Compatibility Code:
- RE17
- Mounting Position:
- any position in relation to normal vertical mounting plane
- Supply Frequency:
- 50...60 Hz +/- 5 %
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electromagnetic Compatibility:
- electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3 || elec
- Circularity Profile:
- ENVEOLI121113EN
- Rohs Exemption Information:
- Yes
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Voltage Range:
- 0.85...1.1 Us
- Voltage Drift:
- +/- 0.2 %/V
- Mechanical Durability:
- 10000000 cycles
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Maximum Switching Voltage:
- 250 V AC
- Contacts Material:
- cadmium free
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- Control Type:
- selector switch front panel
- Range Of Product:
- Harmony Timer Relays
- Product Certifications:
- GL || cULus || CSA
- Environmental Disclosure:
- ENVPEP121117EN
- Minimum Switching Current:
- 10 mA 5 V DC
- Impulse Duration:
- 100 ms with load in parallel typical || 30 ms typical
- Temperature Drift:
- +/- 0.05 %/°C
- Safety Reliability Data:
- MTTFd = 296.8 years || B10d = 270000
- Maximum Switching Current:
- 8 A AC/DC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Catalog:
- View
- Datasheet:
- View
