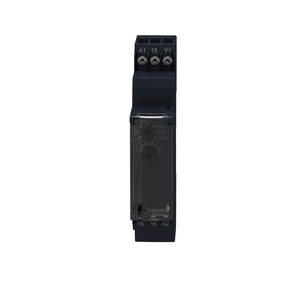

Schneider Electric RE17RMMU Multifunc Timer 1C O 24Vac Dc 240Vac
This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24V DC, 24V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
- Product Or Component Type:
- multifunction relay
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Relative Humidity:
- 93-93 % without condensation IEC 60068-2-30
- Breaking Capacity:
- 2000 VA
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Impulse Duration:
- 100 ms with load in parallel typical || 30 ms typical
- Mechanical Durability:
- 10000000 cycles
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Product Certifications:
- CSA || GL || cULus
- Rohs Exemption Information:
- Yes
- Contacts Material:
- cadmium free
- Supply Frequency:
- 50...60 Hz +/- 5 %
- Reset Time:
- 120 ms on de-energisation typical
- Safety Reliability Data:
- B10d = 270000 || MTTFd = 296.8 years
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Mercury Free:
- Yes
- Time Delay Type:
- power on-delay || on-delay and off-delay || interval || off-delay || symmetrical flashing
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2/50 µs
- Voltage Drift:
- +/- 0.2 %/V
- Power Consumption In Va:
- 0-32 VA 240 V AC
- Electromagnetic Compatibility:
- electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3 || elec
- Electrical Durability:
- 100000 cycles resistive 8 A 250 V AC
- Functionality:
- multifunction
- Temperature Drift:
- +/- 0.05 %/°C
- Discrete Output Type:
- relay
- Contacts Type And Composition:
- 1 C/O
- [Us] Rated Supply Voltage:
- 24...240 V AC 50/60 Hz || 24 V DC
- Ambient Air Temperature For Operation:
- -20-60 °C
- Depth:
- 72 mm
- Standards:
- 2006/95/EC || 2004/108/EC || IEC 61812-1 || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-6-1
- Minimum Switching Current:
- 10 mA 5 V DC
- Device Short Name:
- RE17R
- Operating Rate In Hz:
- 10 Hz
- Environmental Disclosure:
- ENVPEP121117EN
- Circularity Profile:
- ENVEOLI121113EN
- Connections - Terminals:
- screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
- Compatibility Code:
- RE17
- Nominal Output Current:
- 0.333333333333333
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Maximum Delay Response:
- 100 ms
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Voltage Range:
- 0.85...1.1 Us
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- Maximum Power Consumption In W:
- 0.6 W 24 V DC
- Sustainable Offer Status:
- Green Premium product
- Maximum Switching Current:
- 8 A AC/DC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Time Delay Range:
- 6...60 min || 1...10 h || 0.1...1 s || 1...10 s || 1...10 min || 10...100 h || 6...60 s
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Mounting Position:
- any position in relation to normal vertical mounting plane
- Marking:
- CE
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
- Housing Material:
- self-extinguishing
- Net Weight:
- 0.07 kg
- Creepage Distance:
- 4 kV/3 IEC 60664-1
- Range Of Product:
- Harmony Timer Relays
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- Control Type:
- selector switch front panel
- On-Load Factor:
- 1
- Maximum Switching Voltage:
- 250 V AC
- Ambient Air Temperature For Storage:
- -30-60 °C
- Local Signalling:
- LED indicator on steady: relay energised, no timing in progress || LED indicator 80 % ON and 20 % OFF flashing: timing in progress || LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
- Time Delay Type:
- A, Ac, At, B, Bw, C, D, Di, H, Ht
- Input Voltage:
- 10 V
- Width:
- 17.5 mm
- Height:
- 90 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Immunity To Microbreaks:
- 20 ms
