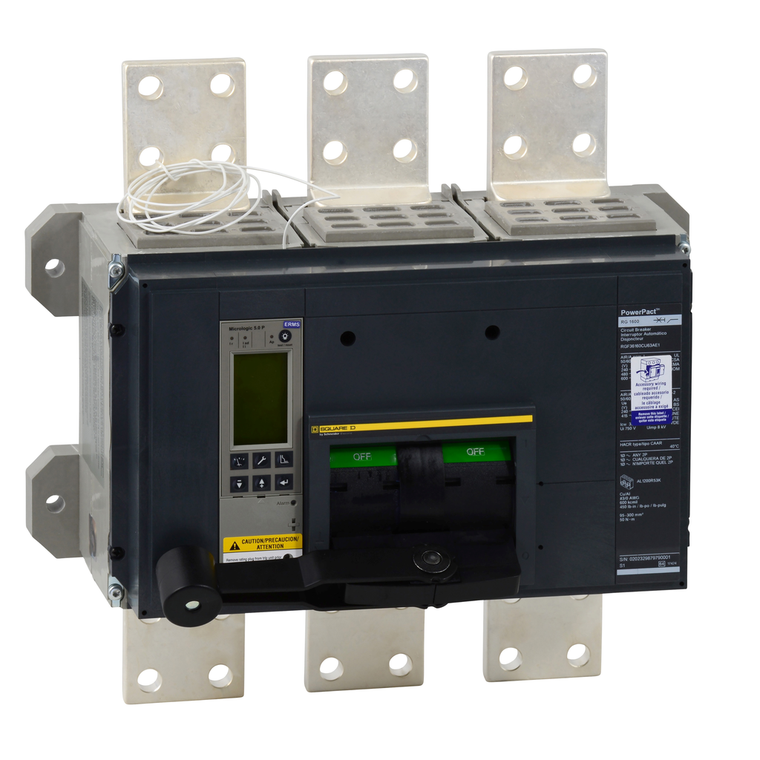

Schneider Electric RGF36160CU64AE1 Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 6.0P, 100%, modbus

Schneider Electric RGF36160CU64AE1 Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 6.0P, 100%, modbus

Schneider Electric
SKU:
RGF36160CU64AE1
$55,251.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Power Trip with a 6.0P trip unit and an LSIG function with Modbus communication. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 1600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Sustainable Offer Status:
Green Premium product
Halogen Content Performance:
Halogen free plastic parts product
Mercury Free:
Yes
Weight:
52 lb(US)
Ambient Air Temperature For Storage:
-50-85°C
Length:
35 mm
Trip Unit Technology:
electronic, power, MicroLogic 6.0 P, LSIG
Trip Unit Name:
MicroLogic 6.0 P
Line Rated Current:
1600-1600 A
Environmental Disclosure:
ENVPEP1407013EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Poles Description:
3P
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Mounting Mode:
unit mount busbar)
Warranty:
18 months
Ip Degree Of Protection:
IP40
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Circuit Breaker Application:
HACR rated
Depth:
14.49 in
Eu Rohs Directive:
Compliant
Local Signaling:
alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || ground indicator 1 LED red) || phase-loading LED green)load balancing)
Country of Origin:
United States
Network Frequency:
50/60 Hz
Communication Interface:
Modbus
Pvc Free:
Yes
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Range:
PowerPact
Terminal Identifier:
AL2500RK
Continuous Current Rating:
1
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Quantity Per Set:
1
Device Application:
distribution
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Control Type:
operating handle
Product Or Component Type:
circuit breaker
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Mounting Support:
busbar
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Electrical Connection:
busbar connection, line || busbar connection, load
Circularity Profile:
ENVEOLI1407013EN
Net Weight:
52 lb(US)
Wire Stripping Length:
35 mm
Tightening Torque:
62-62 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 62-62 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Quality Labels:
CE
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
