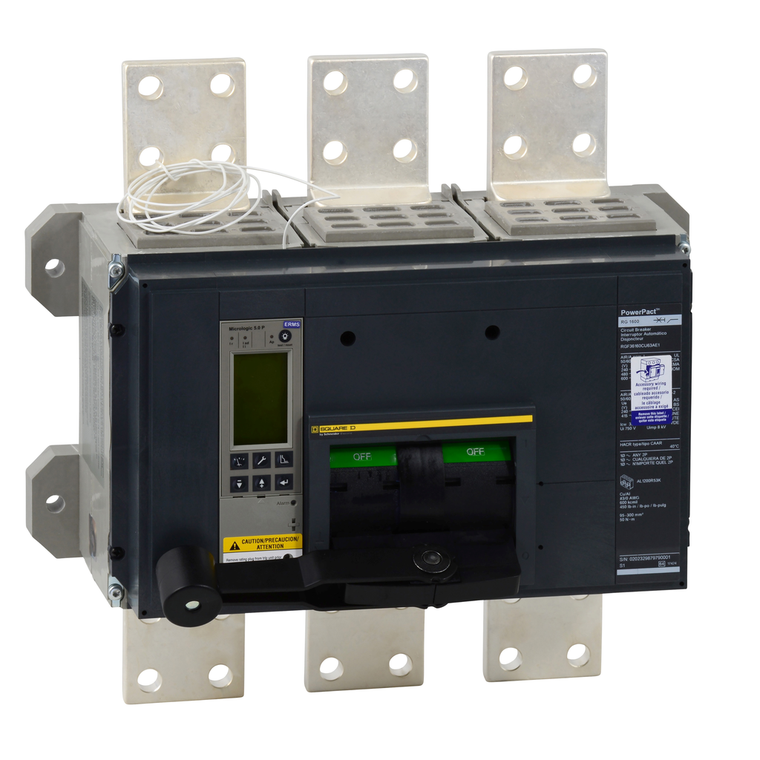

Schneider Electric RGF36160U64AE1 Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 6.0P, 80%, modbus

Schneider Electric RGF36160U64AE1 Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 18kA, busbar, Micrologic 6.0P, 80%, modbus

Schneider Electric
SKU:
RGF36160U64AE1
$31,004.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Power Trip with a 6.0P trip unit and an LSIG function with Modbus communication. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 1600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Communication Interface:
Modbus
Mounting Mode:
unit mount busbar)
Length:
35 mm
Product Name:
PowerPact R
Utilisation Category:
category A
Device Application:
distribution
Terminal Identifier:
AL2500RK
Wire Stripping Length:
35 mm
Halogen Content Performance:
Halogen free plastic parts product
Warranty:
18 months
Pollution Degree:
3 IEC 60947-1
Depth:
14.49 in
Country of Origin:
United States
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Net Weight:
52 lb(US)
Poles Description:
3P
Mounting Support:
busbar
Ambient Air Temperature For Operation:
-25-70°C
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Environmental Disclosure:
ENVPEP2206034EN
Network Frequency:
50/60 Hz
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Control Type:
operating handle
Line Rated Current:
1600-1600 A
Suitability For Isolation:
yes IEC 60947-2
Ip Degree Of Protection:
IP40
Electrical Connection:
busbar connection, line || busbar connection, load
Tightening Torque:
68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Trip Unit Technology:
electronic, power, MicroLogic 6.0 P, LSIG
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circuit Breaker Application:
HACR rated
Rohs Exemption Information:
Yes
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Pvc Free:
Yes
Trip Unit Name:
MicroLogic 6.0 P
Product Or Component Type:
circuit breaker
Eu Rohs Directive:
Compliant with Exemptions
Quality Labels:
CE
Breaking Capacity Code:
G
Local Signaling:
alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || ground indicator 1 LED red) || phase-loading LED green)load balancing)
