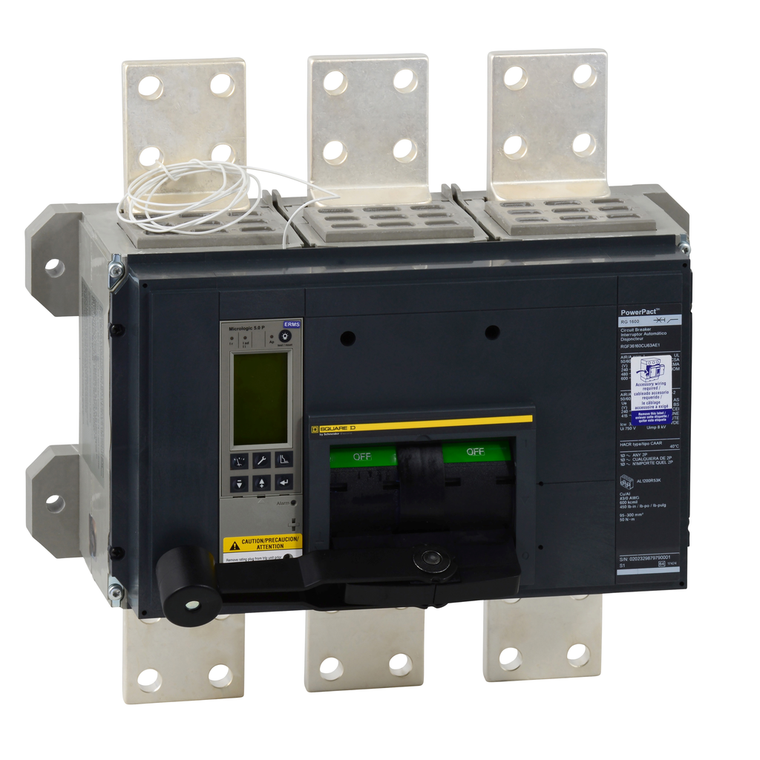

Schneider Electric RJF36160CU64AE1 Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 25kA, busbar, Micrologic 6.0P, 100%, modbus

Schneider Electric RJF36160CU64AE1 Circuit breaker, PowerPacT R, 1600A, 3 pole, 600VAC, 25kA, busbar, Micrologic 6.0P, 100%, modbus

Schneider Electric
SKU:
RJF36160CU64AE1
$38,880.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Power Trip with a 6.0P trip unit and an LSIG function with Modbus communication. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 1600A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Trip Unit Name:
MicroLogic 6.0 P
Product Or Component Type:
circuit breaker
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
Continuous Current Rating:
1
Eu Rohs Directive:
Compliant with Exemptions
Line Rated Current:
1600-1600 A
Circularity Profile:
ENVEOLI2206034EN
Control Type:
operating handle
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Quality Labels:
CE
Mounting Mode:
unit mount busbar)
Product Certifications:
UL || CSA || NOM
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Device Application:
distribution
Local Signaling:
alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || ground indicator 1 LED red) || phase-loading LED green)load balancing)
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Breaking Capacity:
AIR 100 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 25 kA 600 V AC 50/60 Hz UL 489 || Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Depth:
14.49 in
Network Frequency:
50/60 Hz
Suitability For Isolation:
yes IEC 60947-2
Poles Description:
3P
Awg Gauge:
AWG 3/0...750 kcmil aluminium/copper
Circuit Breaker Application:
HACR rated
Breaking Capacity Code:
J
Net Weight:
52 lb(US)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Quantity Per Set:
1
Country of Origin:
United States
Wire Stripping Length:
35 mm
Environmental Disclosure:
ENVPEP2206034EN
Utilisation Category:
category A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Weight:
52 lb(US)
Halogen Content Performance:
Halogen free plastic parts product
Ip Degree Of Protection:
IP40
Trip Unit Technology:
electronic, power, MicroLogic 6.0 P, LSIG
Range:
PowerPact
Mercury Free:
Yes
Electrical Connection:
busbar connection, line || busbar connection, load
Pollution Degree:
3 IEC 60947-1
Ambient Air Temperature For Storage:
-50-85°C
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Length:
35 mm
Warranty:
18 months
Communication Interface:
Modbus
