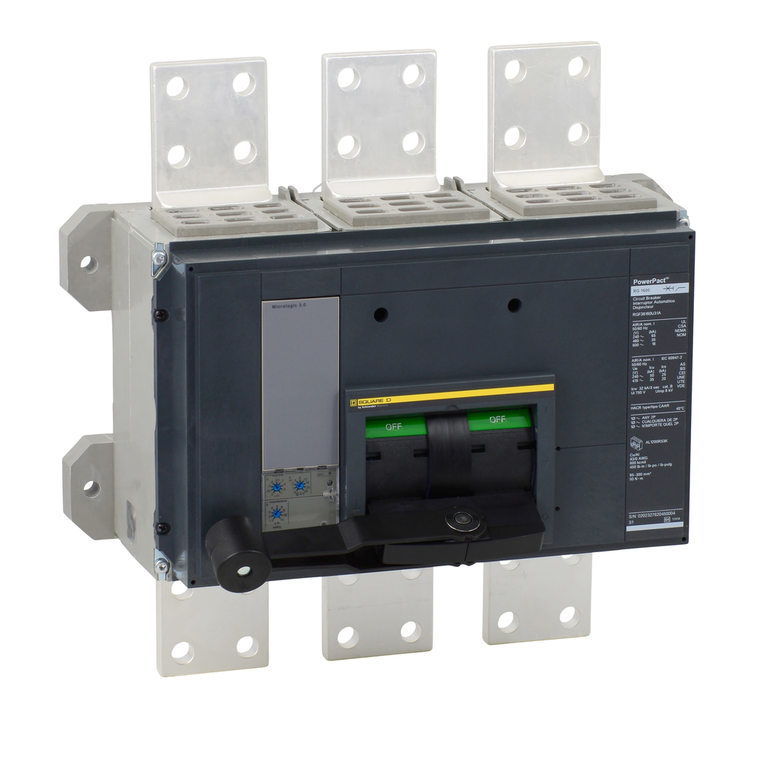

Schneider Electric RKF36200U31A Circuit breaker, PowerPacT R, 2000A, 3 pole, 600VAC, 65kA, busbar, Micrologic 3.0, 80%

Schneider Electric RKF36200U31A Circuit breaker, PowerPacT R, 2000A, 3 pole, 600VAC, 65kA, busbar, Micrologic 3.0, 80%

Schneider Electric
SKU:
RKF36200U31A
$24,336.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 2000A, 3 pole, circuit breaker has an interrupting rating of 65kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Ambient Air Temperature For Operation:
-25-70°C
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Breaking Capacity Code:
K
Mounting Mode:
unit mount busbar)
Continuous Current Rating:
0.8
Pollution Degree:
3 IEC 60947-1
Trip Unit Name:
MicroLogic 3.0
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Weight:
52 lb(US)
Circuit Breaker Application:
HACR rated
Length:
35 mm
Ip Degree Of Protection:
IP40
Suitability For Isolation:
yes IEC 60947-2
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
Country of Origin:
United States
Sustainable Offer Status:
Green Premium product
Network Frequency:
50/60 Hz
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Electrical Connection:
busbar connection, line || busbar connection, load
Product Certifications:
UL || CSA || NOM
Utilisation Category:
category A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Quality Labels:
CE
Rohs Exemption Information:
Yes
Local Signaling:
alarm 1 LED yellow)long-time pick up)
Quantity Per Set:
1
Eu Rohs Directive:
Compliant with Exemptions
Device Application:
distribution
Mounting Support:
busbar
Control Type:
operating handle
Wire Stripping Length:
35 mm
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
[Ics] Rated Service Breaking Capacity:
65 kA 240 V AC 50/60 Hz IEC 60947-2 || 55 kA 380/415 V AC 50/60 Hz IEC 60947-2
Ambient Air Temperature For Storage:
-50-85°C
Circularity Profile:
ENVEOLI2206034EN
Range:
PowerPact
Environmental Disclosure:
ENVPEP2206034EN
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 65 kA 480 V AC 50/60 Hz UL 489 || AIR 65 kA 600 V AC 50/60 Hz UL 489 || Icu 85 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 70 kA 380/415 V AC 50/60 Hz IEC 60947-2
Halogen Content Performance:
Halogen free plastic parts product
Pvc Free:
Yes
Tightening Torque:
68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil) || 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
Width:
16.53 in
Product Name:
PowerPact R
Product Or Component Type:
circuit breaker
Line Rated Current:
2000-2000 A
Terminal Identifier:
AL2500RK
