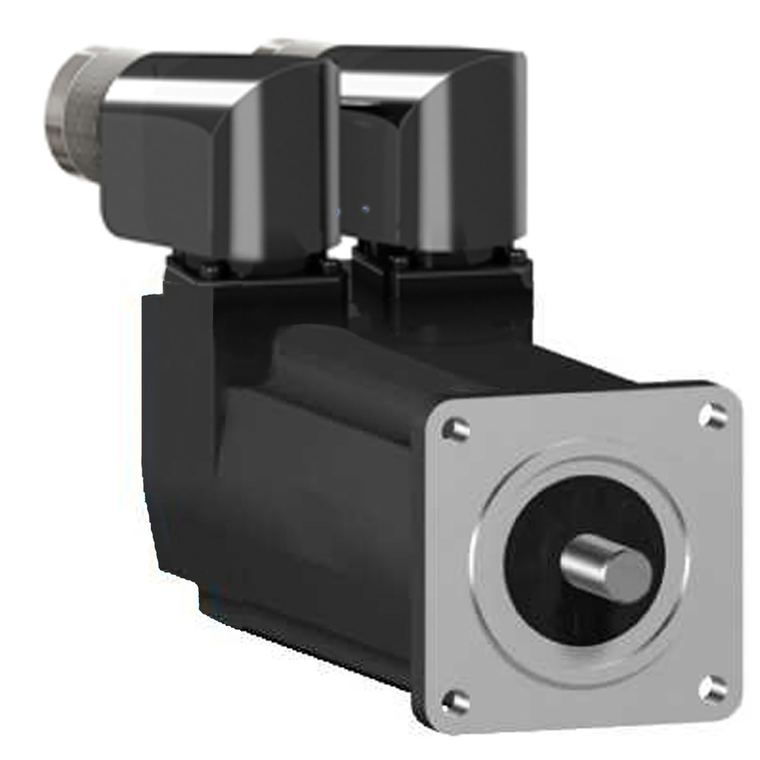

Schneider Electric SH30552P11A2100 servo motor SH3 055 0,71Nm,key,single,nobrake,90°conn.IP65/IP65,9k RPM
SKU:
SH30552P11A2100
UPC:
MPN:
SH30552P11A2100
Condition:
New
Shaft End:
parallel key
Length:
154.4 mm
Type Of Cooling:
natural convection
Maximum Axial Force Fa:
40 N
Number Of Mounting Holes:
4
Rotor Inertia:
0.096 kg.cm²
Peak Stall Torque:
2.5 N.m 115...480 V three phase
Centring Collar Diameter:
40 mm
Shaft Diameter:
9 mm
Ip Degree Of Protection:
IP65 motor: conforming to EN/IEC 60034-5 || IP65 shaft bushing: conforming to EN/IEC 60034-5
Key Width:
3 mm
Mercury Free:
Yes
Maximum Radial Force Fr:
370 N 1000 rpm || 290 N 2000 rpm || 260 N 3000 rpm || 230 N 4000 rpm || 220 N 5000 rpm || 200 N 6000 rpm || 190 N 7000 rpm || 190 N 8000 rpm
Motor Flange Size:
55 mm
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shaft Length:
20 mm
Electrical Connection:
rotatable right angled connector
Circularity Profile:
N/A
Torque Constant:
0.59 N.m/A 120°C
Encoder Type:
absolute single turn SinCos Hiperface
Stator Inductance:
53.54 mH
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Number Of Motor Poles:
3
Back Emf Constant:
40 V/krpm 20°C
Weight:
1.5 kg
Holding Brake:
without
Continuous Stall Torque:
0.71 N.m 115...480 V three phase
Continuous Stall Current:
1.2 A
Nominal Output Power:
160 W 115 V single phase || 310 W 230 V single phase || 600 W 400 V three phase || 670 W 480 V three phase
Pvc Free:
Yes
Width:
3 mm
Net Weight:
1.5 kg
[Us] Rated Supply Voltage:
115...480 V
Speed Feedback Resolution:
128 periods
Country of Origin:
United States
Environmental Disclosure:
ENVPEP111049EN
Device Short Name:
SH3.....P
Maximum Current Irms:
4.8 A
Mounting Support:
international standard flange
Range Compatibility:
PacDrive 3
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 3-pole servo motor features maximum mechanical speed of 9000RPM and parallel key shaft end...
