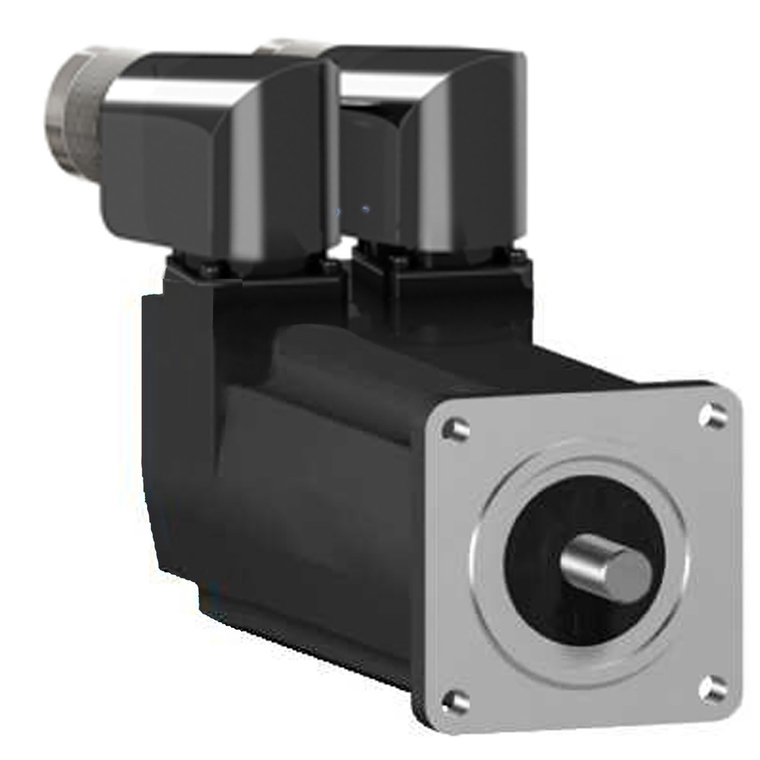

Schneider Electric SH30553P12F2000 servo motor SH3 055 1,05Nm,key,multi,brake,90°conn.IP54/IP65,9k RPM
SKU:
SH30553P12F2000
UPC:
MPN:
SH30553P12F2000
Condition:
New
Circularity Profile:
N/A
Holding Torque:
0.8 N.m
Stator Resistance:
10.4 Ohm
Shaft Diameter:
9 mm
Centring Collar Depth:
2 mm
Stator Inductance:
37.98 mH
Shaft End:
parallel key
Sustainable Offer Status:
Green Premium product
Pvc Free:
Yes
Maximum Axial Force Fa:
40 N
Encoder Type:
absolute multiturn SinCos Hiperface
Maximum Current Irms:
6.5 A
Circle Diameter Of The Mounting Holes:
63 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Torque Constant:
0.62 N.m/A 120°C
Weight:
1.9 kg
Nominal Output Power:
240 W 115 V single phase || 460 W 230 V single phase || 880 W 400 V three phase || 970 W 480 V three phase
Phase:
three phase
Peak Stall Torque:
3.5 N.m 115...480 V three phase
Nominal Torque:
1.13 N.m 115 V single phase || 1.1 N.m 230 V single phase || 0.81 N.m 400 V three phase || 0.81 N.m 480 V three phase
Ip Degree Of Protection:
IP54 shaft bushing without shaft seal ring: conforming to EN/IEC 60034-5 || IP65 motor: conforming to EN/IEC 60034-5 || IP65 shaft bushing: conforming to EN/IEC 60034-5
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum Mechanical Speed:
9000 rpm
Nominal Speed:
4000 rpm 230 V single phase || 9000 rpm 480 V three phase || 2000 rpm 115 V single phase || 8000 rpm 400 V three phase
Type Of Cooling:
natural convection
Rohs Exemption Information:
Yes
Continuous Stall Torque:
1.05 N.m 115...480 V three phase
Back Emf Constant:
41 V/krpm 20°C
Mounting Holes Diameter:
5.5 mm
Width:
3 mm
Maximum Radial Force Fr:
190 N 8000 rpm || 390 N 1000 rpm || 310 N 2000 rpm || 270 N 3000 rpm || 240 N 4000 rpm || 230 N 5000 rpm || 210 N 6000 rpm || 200 N 7000 rpm
This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 3-pole servo motor features maximum mechanical speed of 9000RPM and parallel key shaft end...
