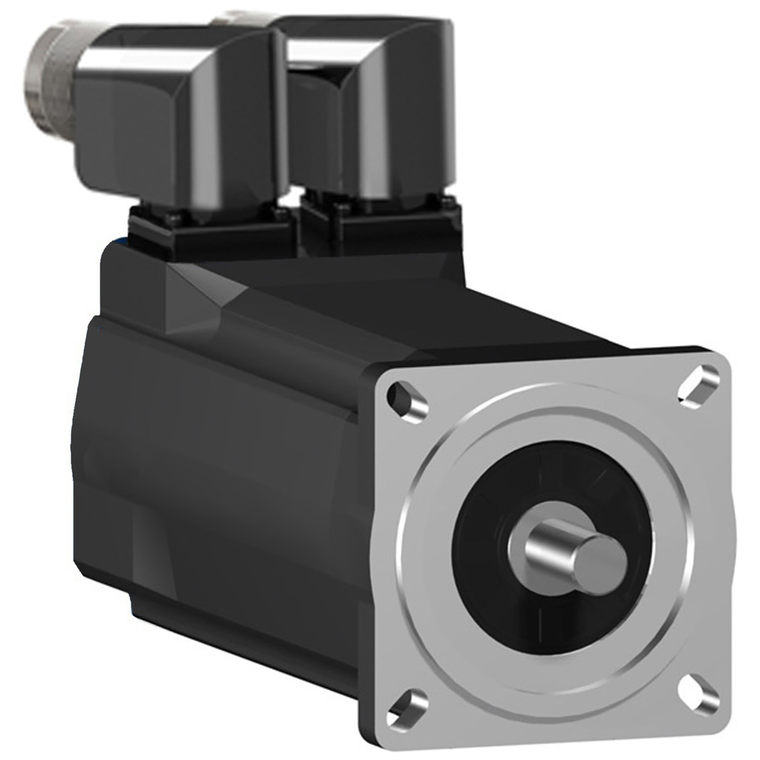

Schneider Electric SH30701P11A2200 servo motor SH3 070 1,25Nm,key,single,nobrake,90°conn.IP65/IP67,8k RPM

Schneider Electric SH30701P11A2200 servo motor SH3 070 1,25Nm,key,single,nobrake,90°conn.IP65/IP67,8k RPM

Schneider Electric
SKU:
SH30701P11A2200
$1,472.42
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
servo motor SH3 070 1,25Nm,key,single,nobrake,90°conn.IP65/IP67,8k RPM
Additional Information
Stator Inductance:
60.25 mH
Nominal Torque:
1.4 N.m 115 V single phase || 1.4 N.m 230 V single phase || 1.1 N.m 400 V three phase || 1.1 N.m 480 V three phase
Net Weight:
2.1 kg
Circle Diameter Of The Mounting Holes:
82 mm
Electrical Connection:
straight connector
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury Free:
Yes
Speed Feedback Resolution:
128 periods
Continuous Stall Current:
1.8 A
[Us] Rated Supply Voltage:
115...480 V
Product Or Component Type:
servo motor
Ip Degree Of Protection:
IP65 motor: conforming to EN/IEC 60034-5 || IP65 shaft bushing: conforming to EN/IEC 60034-5 || IP67 housing: conforming to EN/IEC 60034-5
Rotor Inertia:
0.25 kg.cm²
Torque Constant:
0.69 N.m/A 120°C
Weight:
2.1 kg
Number Of Motor Poles:
3
Encoder Type:
absolute single turn SinCos Hiperface
Mounting Holes Diameter:
5.5 mm
Sustainable Offer Status:
Green Premium product
Range Compatibility:
PacDrive 3
Nominal Output Power:
220 W 115 V single phase || 440 W 230 V single phase || 820 W 400 V three phase || 950 W 480 V three phase
Shaft End:
parallel key
Nominal Speed:
1500 rpm 115 V single phase || 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase
Environmental Disclosure:
ENVPEP111049EN
Shaft Diameter:
11 mm
Holding Brake:
without
Key Width:
4 mm
Continuous Stall Torque:
1.25 N.m 115...480 V three phase
Back Emf Constant:
46 V/krpm 20°C
Shaft Length:
23 mm
Country of Origin:
United States
Maximum Axial Force Fa:
80 N
Phase:
three phase
Rohs Exemption Information:
Yes
Continuous Power:
690 W
Pvc Free:
Yes
Peak Stall Torque:
3.5 N.m 115...480 V three phase
Number Of Mounting Holes:
4
Centring Collar Depth:
2.5 mm
Maximum Mechanical Speed:
8000 rpm
Maximum Current Irms:
5.7 A
Centring Collar Diameter:
60 mm
Stator Resistance:
10.4 Ohm
Maximum Radial Force Fr:
660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm
China Rohs Regulation:
X
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Type Of Cooling:
natural convection
Motor Flange Size:
70 mm
