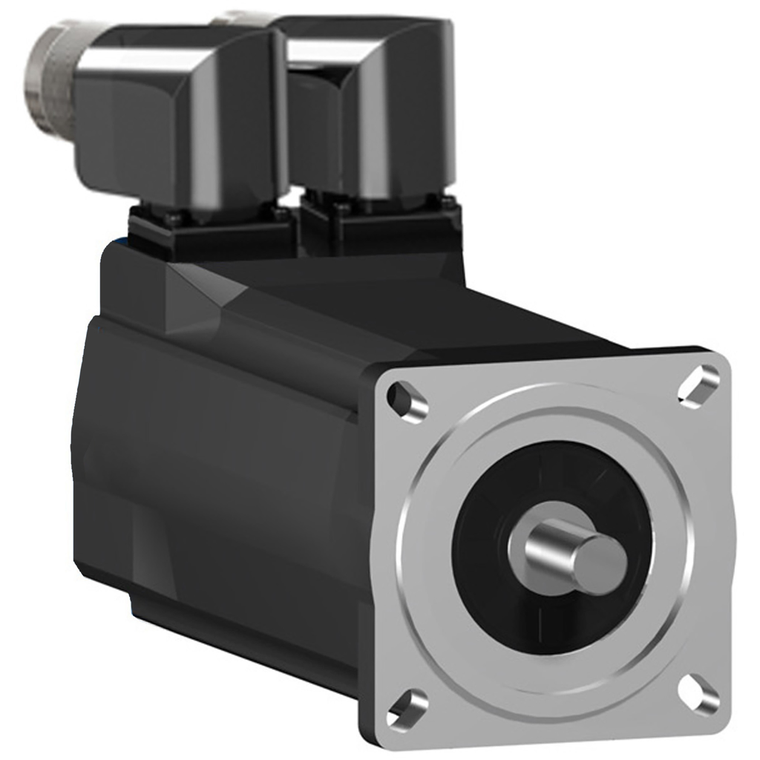

Schneider Electric SH30701P12A2100 Sh3 Motor 070.1 Key Mlt Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH30701P12A2100 Sh3 Motor 070.1 Key Mlt Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH30701P12A2100

UPC:

3606481971616

MPN:

Condition:

New

Availability:

Schneider orders under $1250 will incur a $60 processing fee at checkout

Nominal Torque:

1.4 N.m 115 V single phase || 1.4 N.m 230 V single phase || 1.1 N.m 400 V three phase || 1.1 N.m 480 V three phase

Circle Diameter Of The Mounting Holes:

82 mm

Maximum Axial Force Fa:

80 N

Shaft Diameter:

11 mm

Mounting Support:

international standard flange

Torque Constant:

0.69 N.m/A 120 °C

Centring Collar Depth:

2.5 mm

Key Width:

4 mm

Shaft Length:

23 mm

Continuous Stall Torque:

1.25 N.m 115...480 V three phase

Electrical Connection:

straight connector

Product Or Component Type:

servo motor

Continuous Power:

690 W

Stator Inductance:

60.25 mH

Pvc Free:

Yes

[Us] Rated Supply Voltage:

115...480 V

Continuous Stall Current:

1.8 A

Device Short Name:

SH3.....P

China Rohs Regulation:

X

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Encoder Type:

absolute multiturn SinCos Hiperface

Maximum Current Irms:

5.7 A

Maximum Mechanical Speed:

8000 rpm

Stator Resistance:

10.4 Ohm

Number Of Mounting Holes:

4

Nominal Speed:

1500 rpm 115 V single phase || 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

Circularity Profile:

N/A

Length:

154 mm

Maximum Radial Force Fr:

660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm

Speed Feedback Resolution:

128 periods

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Peak Stall Torque:

3.5 N.m 115...480 V three phase

Mercury Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Warranty:

18 months

Rotor Inertia:

0.25 kg.cm²

Motor Flange Size:

70 mm

Type Of Cooling:

natural convection

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Phase:

three phase

Centring Collar Diameter:

60 mm

Mounting Holes Diameter:

5.5 mm

Rohs Exemption Information:

Yes

Holding Brake:

without

Shaft End:

parallel key

Range Compatibility:

PacDrive 3

Net Weight:

2.1 kg

Environmental Disclosure:

ENVPEP111049EN

Back Emf Constant:

46 V/krpm 20 °C

Sustainable Offer Status:

Green Premium product

Nominal Output Power:

220 W 115 V single phase || 440 W 230 V single phase || 820 W 400 V three phase || 950 W 480 V three phase

Number Of Motor Poles:

3
