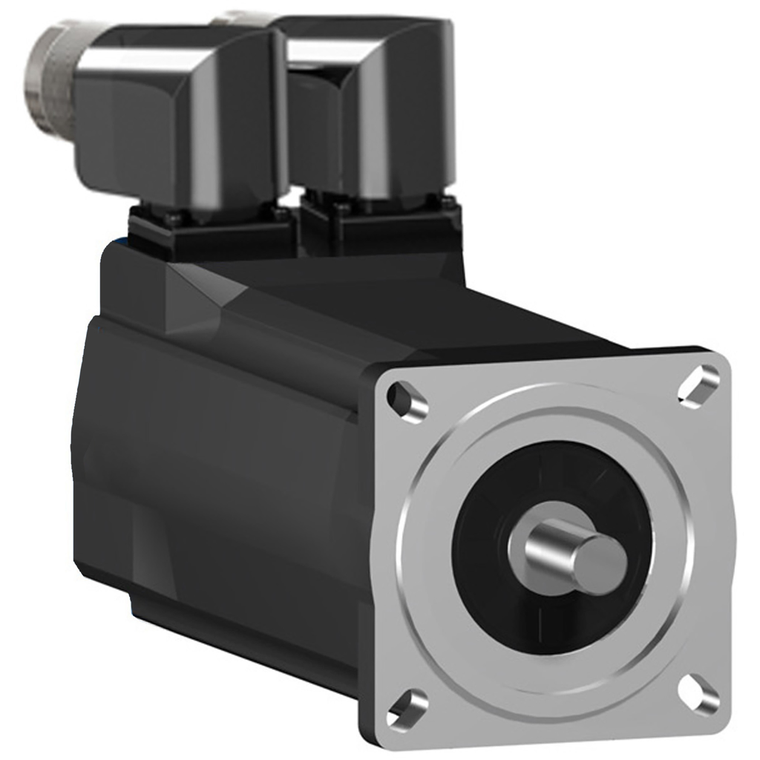

Schneider Electric SH30703P12A2200 Sh3 Motor 070.3 Key Mlt Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH30703P12A2200 Sh3 Motor 070.3 Key Mlt Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH30703P12A2200

UPC:

3.60649E+12

MPN:

Condition:

New

Availability:

Schneider orders under $1250 will incur a $60 processing fee at checkout

Continuous Stall Torque:

2.94 N.m 115...480 V three phase

Encoder Type:

absolute multiturn SinCos Hiperface

Nominal Speed:

1500 rpm 115 V single phase || 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

Net Weight:

3.6 kg

Shaft End:

parallel key

Shaft Length:

30 mm

Holding Brake:

without

Sustainable Offer Status:

Green Premium product

Rohs Exemption Information:

Yes

Circularity Profile:

N/A

Range Compatibility:

PacDrive 3

[Us] Rated Supply Voltage:

115...480 V

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5

Rotor Inertia:

0.58 kg.cm²

Key Width:

5 mm

Maximum Radial Force Fr:

730 N 1000 rpm || 580 N 2000 rpm || 510 N 3000 rpm || 460 N 4000 rpm || 430 N 5000 rpm || 400 N 6000 rpm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Mechanical Speed:

8000 rpm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Centring Collar Depth:

2.5 mm

Number Of Motor Poles:

3

Mounting Holes Diameter:

5.5 mm

Motor Flange Size:

70 mm

Stator Inductance:

20.3 mH

Warranty:

18 months

Maximum Current Irms:

17 A

Number Of Mounting Holes:

4

Shaft Diameter:

14 mm

Speed Feedback Resolution:

128 periods

Stator Resistance:

2.7 Ohm

Centring Collar Diameter:

60 mm

Length:

220 mm

China Rohs Regulation:

X

Phase:

three phase

Back Emf Constant:

49 V/krpm 20 °C

Nominal Torque:

2.95 N.m 115 V single phase || 2.8 N.m 230 V single phase || 2.1 N.m 400 V three phase || 2.1 N.m 480 V three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Device Short Name:

SH3.....P

Mounting Support:

international standard flange

Torque Constant:

0.72 N.m/A 120 °C

Environmental Disclosure:

ENVPEP111049EN

Continuous Power:

1330 W

Maximum Axial Force Fa:

80 N

Continuous Stall Current:

4.1 A

Type Of Cooling:

natural convection

Nominal Output Power:

460 W 115 V single phase || 880 W 230 V single phase || 1450 W 400 V three phase || 1550 W 480 V three phase

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Pvc Free:

Yes

Product Or Component Type:

servo motor

Mercury Free:

Yes

Circle Diameter Of The Mounting Holes:

82 mm

Electrical Connection:

straight connector

Peak Stall Torque:

11.3 N.m 115...480 V three phase
