Schneider Electric

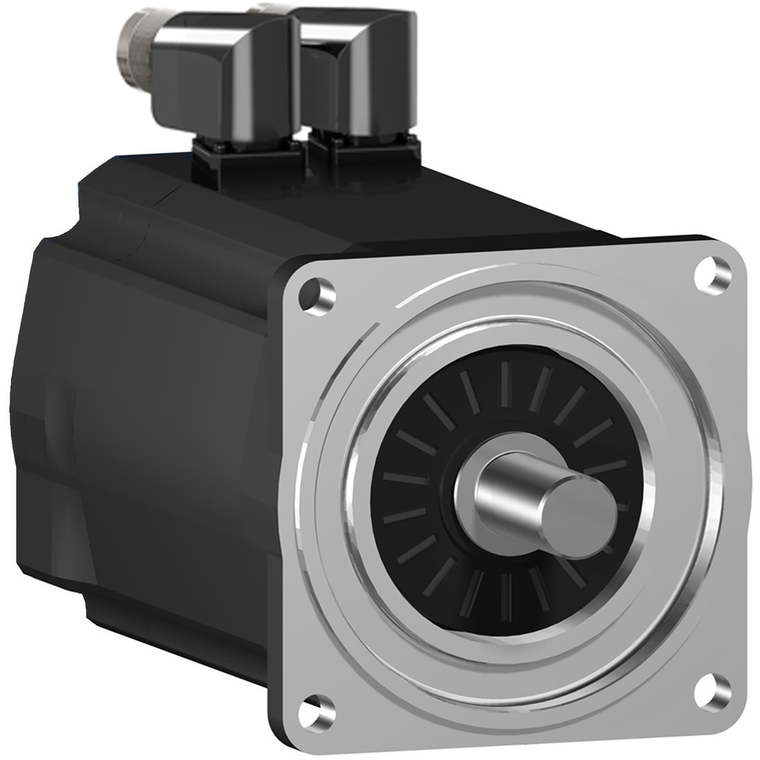

Schneider Electric SH31001P02F2000 servo motor SH3 100 2,94Nm,nokey,multi,brake,90°conn.IP54/IP65,6k RPM

(No reviews yet) Write a Review
SKU:
SH31001P02F2000
MPN:
SH31001P02F2000
Condition:
New
Shaft Diameter:
19 mm
Centring Collar Diameter:
95 mm
Back Emf Constant:
60 V/krpm 20°C
Stator Inductance:
27.15 mH
Rotor Inertia:
2.018 kg.cm²
Country of Origin:
United States
Electrical Connection:
rotatable right angled connector
Device Short Name:
SH3.....P
Sustainable Offer Status:
Green Premium product
Mounting Support:
international standard flange
Continuous Power:
1190 W
Continuous Stall Current:
3.5 A
Peak Stall Torque:
9.6 N.m 115...480 V three phase
Nominal Speed:
1250 rpm 115 V single phase || 2500 rpm 230 V single phase || 5000 rpm 400 V three phase || 6000 rpm 480 V three phase
Net Weight:
4.8 kg
Shaft End:
smooth shaft
Product Or Component Type:
servo motor
Maximum Radial Force Fr:
900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm
[Us] Rated Supply Voltage:
115...480 V
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Encoder Type:
absolute multiturn SinCos Hiperface
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mounting Holes Diameter:
9.0 mm
Continuous Stall Torque:
2.94 N.m 115...480 V three phase
Shaft Length:
40 mm
Phase:
three phase
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Number Of Motor Poles:
4
Holding Brake:
with
Maximum Current Irms:
0
Holding Torque:
9 N.m
Maximum Mechanical Speed:
6000 rpm
Centring Collar Depth:
3.5 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty:
18 months
Speed Feedback Resolution:
128 periods
Nominal Output Power:
410 W 115 V single phase || 790 W 230 V single phase || 1410 W 400 V three phase || 1630 W 480 V three phase
Number Of Mounting Holes:
4
Stator Resistance:
3.8 Ohm
Range Compatibility:
PacDrive 3
Nominal Torque:
2.91 N.m 115 V single phase || 2.64 N.m 230 V single phase || 2.27 N.m 400 V three phase || 2.27 N.m 480 V three phase
Mercury Free:
Yes
Weight:
4.8 kg
Maximum Axial Force Fa:
160 N
Type Of Cooling:
natural convection
Ip Degree Of Protection:
IP54 shaft bushing without shaft seal ring: conforming to EN/IEC 60034-5 || IP65 motor: conforming to EN/IEC 60034-5 || IP65 shaft bushing: conforming to EN/IEC 60034-5
Circularity Profile:
N/A
Torque Constant:
0.84 N.m/A 120°C
$1,893.20

Description

This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 4-pole servo motor features maximum mechanical speed of 6000RPM and smooth shaft end with holding brake. It is an equipped with an absolute multi-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 3.5A and a continuous power of 1190W. The shaft dimensions are 19mm (diameter) x 40mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 and IP65 rated product. The length of this product is 199.5mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 4.8kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 100mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
