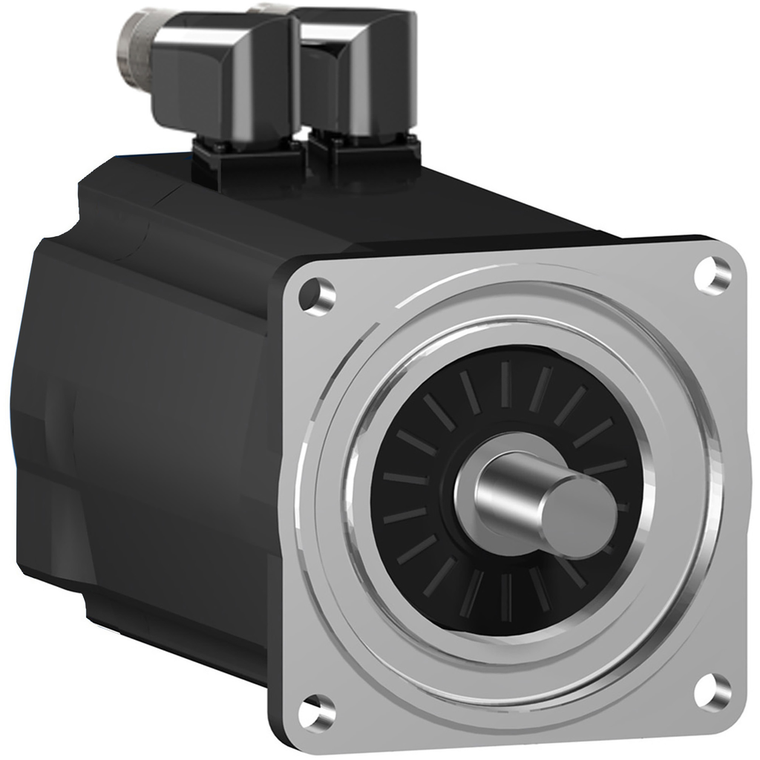

Schneider Electric SH31003P11A2000 Sh3 Motor 100.3 Key Sgl Ang Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH31003P11A2000 Sh3 Motor 100.3 Key Sgl Ang Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31003P11A2000

UPC:

3.60649E+12

MPN:

Condition:

New

Availability:

Schneider orders under $1250 will incur a $60 processing fee at checkout

Continuous Stall Current:

6.6 A

Length:

240.5 mm

[Us] Rated Supply Voltage:

115...480 V

Rohs Exemption Information:

Yes

Back Emf Constant:

77 V/krpm 20 °C

Shaft Diameter:

19 mm

Stator Inductance:

13.45 mH

Mercury Free:

Yes

Sustainable Offer Status:

Green Premium product

Nominal Torque:

5.1 N.m 480 V three phase || 7.5 N.m 115 V single phase || 7 N.m 230 V single phase || 5.7 N.m 400 V three phase

Net Weight:

7.5 kg

Circularity Profile:

N/A

Number Of Motor Poles:

4

Motor Flange Size:

100 mm

Warranty:

18 months

Shaft End:

parallel key

Pvc Free:

Yes

Environmental Disclosure:

ENVPEP111049EN

Maximum Axial Force Fa:

160 N

Holding Brake:

without

Mounting Support:

international standard flange

Maximum Radial Force Fr:

1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm

Nominal Speed:

1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Continuous Stall Torque:

8 N.m 115...480 V three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Nominal Output Power:

790 W 115 V single phase || 1470 W 230 V single phase || 2390 W 400 V three phase || 2560 W 480 V three phase

Speed Feedback Resolution:

128 periods

Circle Diameter Of The Mounting Holes:

115 mm

Number Of Mounting Holes:

4

Rotor Inertia:

3.22 kg.cm²

Stator Resistance:

1.43 Ohm

Continuous Power:

2400 W

Ip Degree Of Protection:

shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Electrical Connection:

straight connector

Maximum Current Irms:

28.3 A

Peak Stall Torque:

28.3 N.m 115...480 V three phase

Centring Collar Diameter:

95 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Holes Diameter:

9.0 mm

Torque Constant:

1.22 N.m/A 120 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Key Width:

6 mm

Maximum Mechanical Speed:

6000 rpm

Centring Collar Depth:

3.5 mm

Range Compatibility:

PacDrive 3

Phase:

three phase

Encoder Type:

absolute single turn SinCos Hiperface

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shaft Length:

40 mm

Device Short Name:

SH3.....P

Type Of Cooling:

natural convection

China Rohs Regulation:

X

Product Or Component Type:

servo motor
