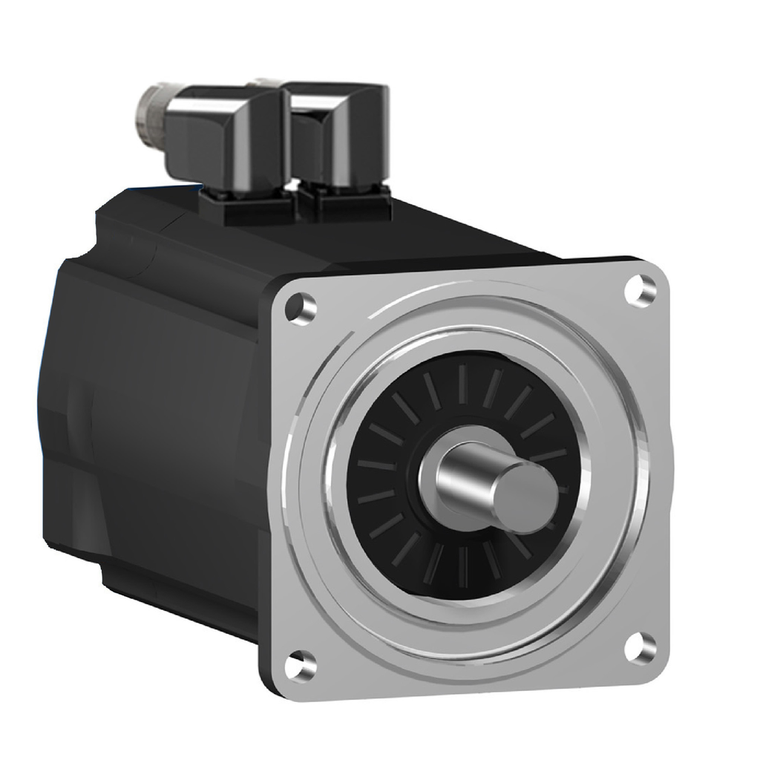

Schneider Electric SH31402P02A2200 servo motor SH3 140 19,5Nm,nokey,multi,nobrake,90°conn.IP65/IP67,4k RPM

Schneider Electric SH31402P02A2200 servo motor SH3 140 19,5Nm,nokey,multi,nobrake,90°conn.IP65/IP67,4k RPM

Schneider Electric
SKU:
SH31402P02A2200
$4,467.40
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
servo motor SH3 140 19,5Nm,nokey,multi,nobrake,90°conn.IP65/IP67,4k RPM
Additional Information
Pvc Free:
Yes
Weight:
16.6 kg
Maximum Current Irms:
44.1 A
Electrical Connection:
rotatable right angled connector
Circle Diameter Of The Mounting Holes:
165 mm
Peak Stall Torque:
60.1 N.m 115...480 V three phase
Shaft End:
smooth shaft
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mercury Free:
Yes
Continuous Power:
3900 W
Net Weight:
16.6 kg
Torque Constant:
1.47 N.m/A 120°C
China Rohs Regulation:
X
Shaft Length:
50 mm
Shaft Diameter:
24 mm
Device Short Name:
SH3.....P
Mounting Support:
international standard flange
Nominal Speed:
750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Stator Inductance:
11.225 mH
Nominal Output Power:
1460 W 115 V single phase || 2690 W 230 V single phase || 3860 W 400 V three phase || 3660 W 480 V three phase
Product Or Component Type:
servo motor
Continuous Stall Torque:
19.5 N.m 115...480 V three phase
Environmental Disclosure:
ENVPEP111049EN
Continuous Stall Current:
13.2 A
Phase:
three phase
Back Emf Constant:
101 V/krpm 20°C
Type Of Cooling:
natural convection
Maximum Axial Force Fa:
300 N
Circularity Profile:
N/A
Warranty:
18 months
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Encoder Type:
absolute multiturn SinCos Hiperface
Range Compatibility:
PacDrive 3
Holding Brake:
without
Stator Resistance:
0.6 Ohm
Number Of Mounting Holes:
4
Country of Origin:
United States
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Mechanical Speed:
4000 rpm
Centring Collar Diameter:
130 mm
Maximum Radial Force Fr:
2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm
Nominal Torque:
18.6 N.m 115 V single phase || 17.1 N.m 230 V single phase || 12.3 N.m 400 V three phase || 9.7 N.m 480 V three phase
Centring Collar Depth:
3.5 mm
Mounting Holes Diameter:
11 mm
Sustainable Offer Status:
Green Premium product
[Us] Rated Supply Voltage:
115...480 V
Motor Flange Size:
140 mm
