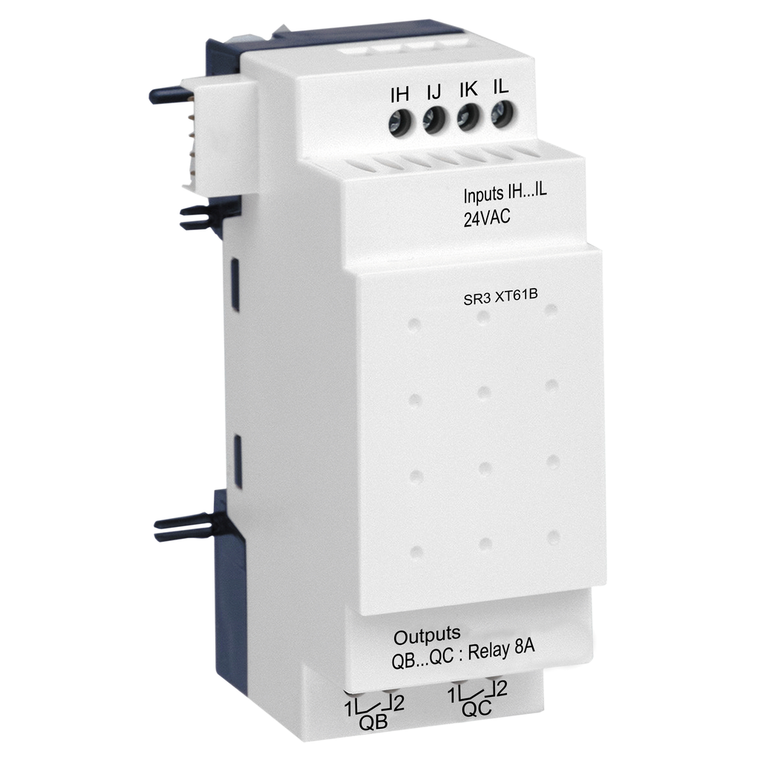

Schneider Electric SR3XT61B Discrete I/O extension module, Zelio Logic, 6 I/O, 24 V AC

Schneider Electric SR3XT61B Discrete I/O extension module, Zelio Logic, 6 I/O, 24 V AC

Schneider Electric
SKU:
SR3XT61B
$159.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Schneider Electric Zelio Logic SR3 Discrete I/O Extension Module Smart Relays uses a supply voltage of 24 volts alternating current, has 6 inputs / outputs contact with screw-clamp terminals. This Discrete I/O Extension Module Smart Relays provides Zelio Logic relays with additional inputs and outputs. It has a compact form-factor, allowing installation on DIN rail. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-12 and EN/IEC 61000-4-4 L3 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Additional Information
Product Or Component Type:
discrete I/O extension module
Warranty:
18 months
Current State 1 Guaranteed:
>= 2 mA discrete input)
Number Of Outputs:
2 relay
Pvc Free:
Yes
Checks:
program memory on each power up
Connections - Terminals:
screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw te
[Us] Rated Supply Voltage:
24 V AC
Current State 0 Guaranteed:
<= 0.5 mA discrete input)
China Rohs Regulation:
X
Cycle Time:
6-90 ms
Overvoltage Category:
III IEC 60664-1
Backup Time:
10 years 25°C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Voltage State 1 Guaranteed:
>= 14 V discrete input
Country of Origin:
France
Output Voltage Limits:
5...30 V DC relay output) || 24...250 V AC
Product Certifications:
CSA || GL || GOST || UL || C-tick
Operating Altitude:
6561.68 ft (2000 m)
Operating Rate In Hz:
0.1 Hz at Ie)relay output || 10 Hz no load)relay output
Circularity Profile:
ENVEOLI2011013EN
Clock Drift:
12 min/year 0-55°C
Switching Capacity In Ma:
>= 10 mA 12 V relay output)
Ip Degree Of Protection:
IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Relative Humidity:
95-95 % without condensation or dripping water
Discrete Input Current:
4.4 mA
Discrete Input Frequency:
47...53 Hz || 57...63 Hz
Output Thermal Current:
8 A for all 2 outputs relay output
Sustainable Offer Status:
Green Premium product
Response Time:
50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50...255 ms FBD from state 0 to state 1)discrete input || 50...255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to st
Electrical Durability:
AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1
Voltage State 0 Guaranteed:
<= 5 V discrete input
Environmental Characteristic:
EMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
Reverse Polarity Protection:
with
Range Of Product:
Zelio Logic
Input Impedance:
4.6 kOhm discrete input
Discrete Input Voltage:
24 V AC
Standards:
IEC 61000-4-12 || IEC 61000-4-6 level 3 || IEC 61000-4-3 || IEC 60068-2-27 Ea || IEC 61000-4-4 level 3 || IEC 61000-4-11 || IEC 61000-4-5 || IEC 61000-4-2 level 3 || IEC 60068-2-6 Fc
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mechanical Durability:
10000000 cycles relay output
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Net Weight:
0.125 kg
Number Or Control Scheme Lines:
120-120 ladder
Ambient Air Temperature For Operation:
-20-40°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55°C IEC 60068-2-1 and IEC 60068-2-2
Maximum Altitude Transport:
3048 m
Supply Voltage Limits:
20.4-28.8 V
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Disturbance Radiated/Conducted:
class B EN 55022-11 group 1
Pollution Degree:
2 IEC 61131-2
