Schneider Electric

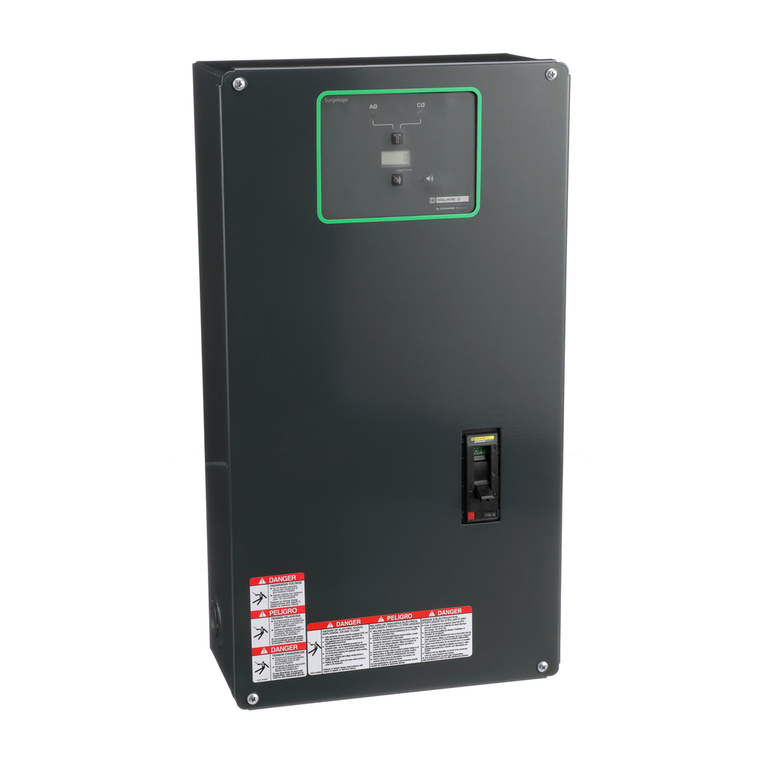

Schneider Electric SSP01EMA24D Surge protection device, Surgelogic, 240kA, 120/240 VAC, 1 phase, 3 wire, NEMA 1, disconnect switch

(No reviews yet) Write a Review
SKU:
SSP01EMA24D
MPN:
SSP01EMA24D
Condition:
New
Standards:
CSA C22.2 No 8 || UL 1449:ed. 4 || UL 1283:ed. 5
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Enclosure Material:
Gray painted sheet steel
Nominal Discharge Current:
20 kA
Device Short Name:
EMA
Number Of Poles:
3
[Uc] Maximum Continuous Operating Voltage:
150 V
Nema Degree Of Protection:
NEMA 1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Surge Current:
240 kA
[Ue] Rated Operational Voltage:
120/240 V AC
Local Signaling:
status LED green per phase normal operation || status LED red per phase fault
Wiring Configuration:
3-wire
Phase:
1 phase
Device Mounting:
surface
Short-Circuit Protection:
200 kA
Cable Length:
483 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information:
Yes
Product Or Component Type:
surge protection device
Ambient Air Temperature For Operation:
65-65°C
Provided Equipment:
alarm enable/disable switch || switch-disconnector || surge counter || dry contacts
Mercury Free:
Yes
Length:
483 mm
Range Of Product:
Surgelogic
Depth:
135 mm
Eu Rohs Directive:
Compliant with Exemptions
Line Rated Current:
150 A
Country of Origin:
Mexico
Connections - Terminals:
lugs AWG 10...AWG 3/0 copper 4 N.m
$7,587.87

Description

Surgelogic™ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. It has 10 year product warranty.
