Schneider Electric

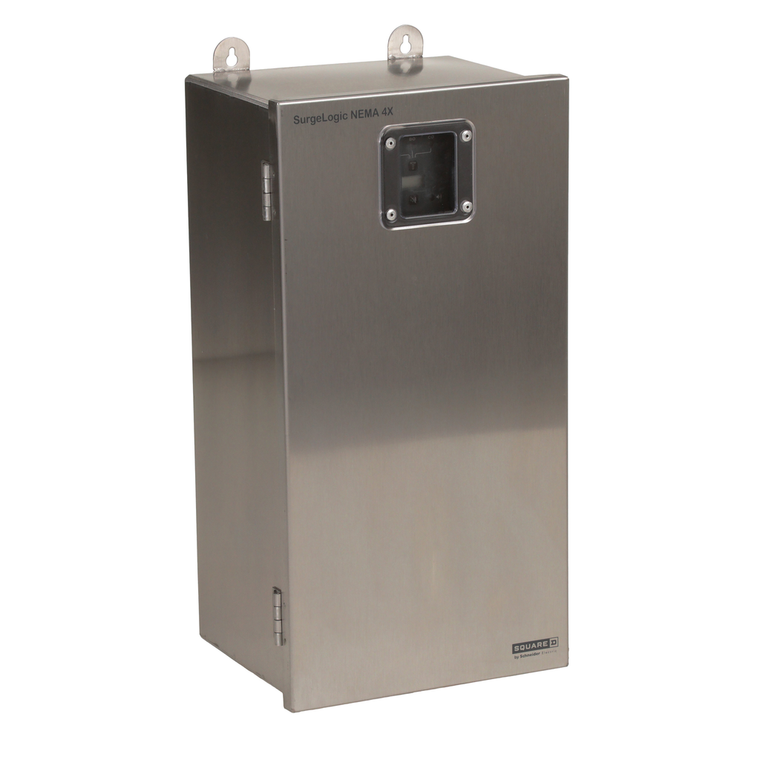

Schneider Electric SSP04EMA24S Surge protection device, Surgelogic, 240kA, 480Y/277 VAC, 3 phase, 4 wire, NEMA 4X

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SSP04EMA24S Surge protection device, Surgelogic, 240kA, 480Y/277 VAC, 3 phase, 4 wire, NEMA 4X

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SSP04EMA24S

UPC:

MPN:

SSP04EMA24S

Condition:

New

Mercury Free:

Yes

Device Short Name:

EMA

Depth:

238.8 mm

Length:

483 mm

Range Of Product:

Surgelogic

Country of Origin:

Mexico

Device Mounting:

surface

Ambient Air Temperature For Operation:

65-65°C

Short-Circuit Protection:

200 kA

Connections - Terminals:

lugs AWG 10...AWG 2 copper 4 N.m

Phase:

3 phase

Nema Degree Of Protection:

NEMA 4X

Standards:

CSA C22.2 No 8 || UL 1449:ed. 4 || UL 1283:ed. 5

Local Signaling:

status LED green per phase normal operation || status LED red per phase fault

Provided Equipment:

alarm enable/disable switch || surge counter || dry contacts

Product Or Component Type:

surge protection device

[Uc] Maximum Continuous Operating Voltage:

320 V

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

[Ue] Rated Operational Voltage:

480Y/277 V AC

Cable Length:

483 mm

Wiring Configuration:

4-wire

Surge Current:

240 kA

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Compliant with Exemptions

Nominal Discharge Current:

20 kA

Enclosure Material:

Stainless Steel
