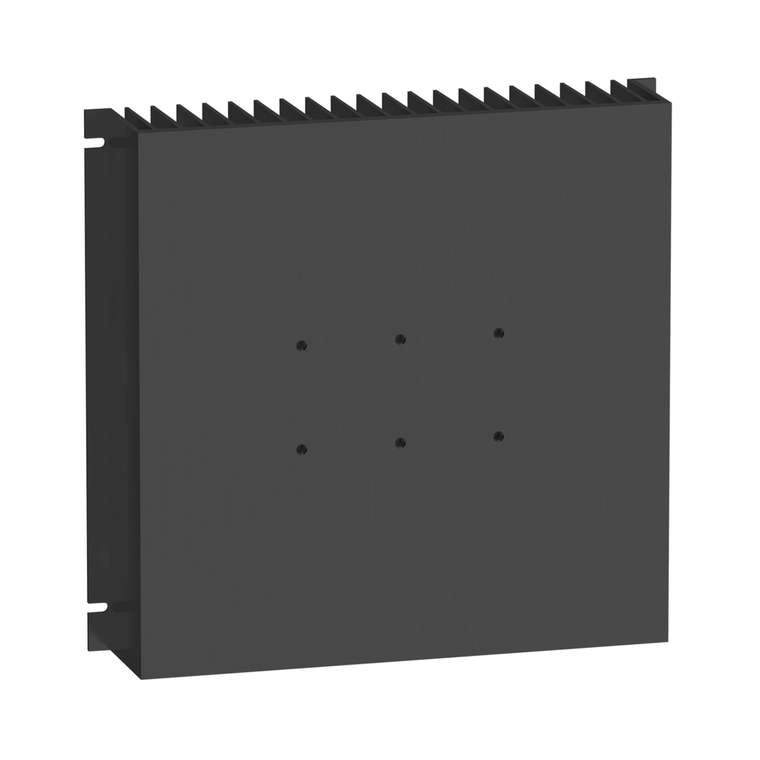

Schneider Electric SSRHP02 Heat Sink

Schneider Electric SSRHP02 Heat Sink

Schneider Electric
SKU:
SSRHP02
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$121.60
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Heat sink, Harmony, panel mount, thermal resistance 0.2 degree C W
Additional Information
Material:
aluminium
Product Compatibility:
1 solid state relay SSR panel
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP1308009
Mounting Support:
panel
Reach Free Of Svhc:
Yes
Tightening Torque:
1.7-2.2 N.m
Toxic Heavy Metal Free:
Yes
Range Of Product:
Harmony Solid State Relays
Depth:
57.9 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Circularity Profile:
N/A
Number Of Mounting Holes:
6 UNC 8-32
Rohs Exemption Information:
Yes
Thermal Resitance:
0.2 °C/W
Width:
247.7 mm
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Product Or Component Type:
heat sink
Surface Finish:
black anodized
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Net Weight:
2.592 kg
Sale Per Indivisible Quantity:
1
Height:
250 mm
Surface And Useful Surface:
6823 cm²
