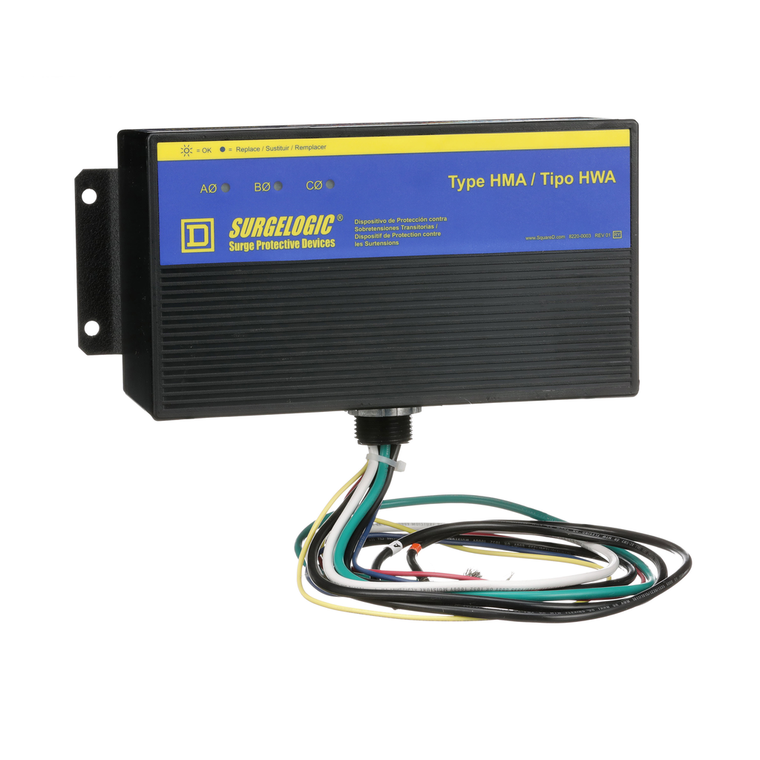

Schneider Electric TVS4HWA10X Surge protection device, Surgelogic, HWA, 100kA, 480Y/277 VAC, 3 phase, 4 wire, NEMA 4X

(No reviews yet) Write a Review
SKU:
TVS4HWA10X
MPN:
TVS4HWA10X
Condition:
New
Country of Origin:
Mexico
Connections - Terminals:
wire phase and neutral AWG 10 copper || wire ground AWG 10 copper || wire dry contacts AWG 22 copper
Nominal Discharge Current:
20 kA
Standards:
UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986
Phase:
3 phase
Environmental Disclosure:
ENVPEP2002011EN
Short-Circuit Protection:
200 kA
Enclosure Material:
Black Plastic
Wiring Configuration:
4-wire
Ambient Air Temperature For Operation:
65-65°C
Local Signaling:
status LED green per phase normal operation || status LED red per phase fault || alarm fault
Device Short Name:
HWA
Warranty:
10 years
[Ue] Rated Operational Voltage:
480Y/277 V AC
Device Mounting:
surface || flush fixing kit
Nema Degree Of Protection:
NEMA 4X
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Compliant with Exemptions
[Uc] Maximum Continuous Operating Voltage:
320 V
Mounting Location:
bottom of enclosure
Circularity Profile:
ENVEOLI2002011EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range Of Product:
Surgelogic
Cable Length:
33.6 in
Surge Current:
100 kA per phase
Length:
33.6 in
Product Or Component Type:
surge protection device
Depth:
79 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Number Of Poles:
2
Rohs Exemption Information:
Yes
$3,853.00

Description

The HWA Series are surge suppressors and noise filters in a compact package. HWA surge protective devices are nipple mounted, parallel connected suppressors with different voltage configurations, including delta. TVS4HWA10X is three phase, four wire, 480Y/277VAC with an 100kA surge current. The surge suppressors use three pole spaces in a QO or Homeline load center, or NQ panelboard. The devices are NEMA 4X rated, allowing either indoor or outdoor installation. The devices comply with UL and CSA standards.
