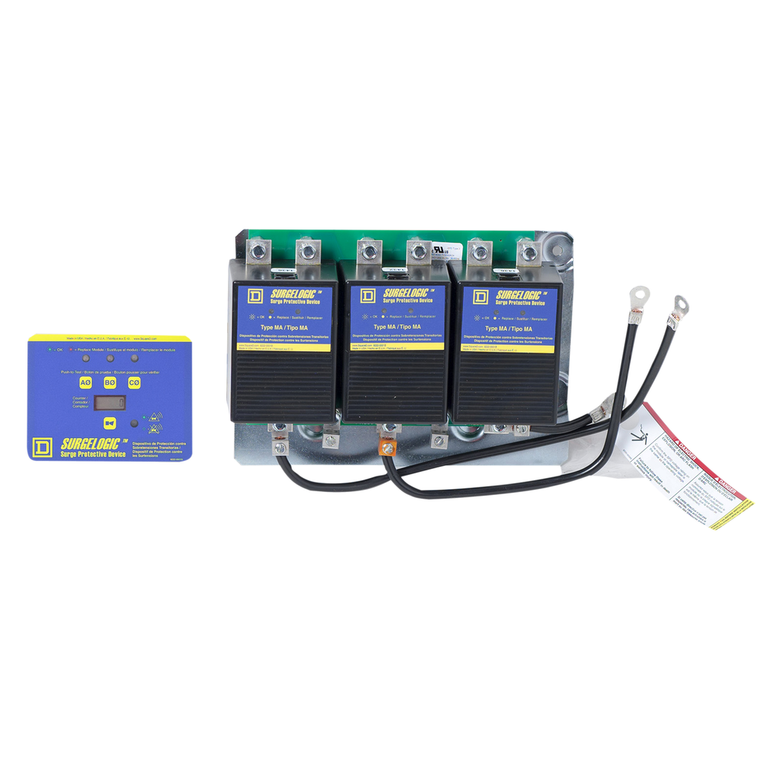

Schneider Electric TVS8IMA24O1 OEM assembler kit, Surgelogic, 240kA, 600Y/347 VAC, 3 phase, 4 wire, SPD type 1

Schneider Electric TVS8IMA24O1 OEM assembler kit, Surgelogic, 240kA, 600Y/347 VAC, 3 phase, 4 wire, SPD type 1

Schneider Electric
SKU:
TVS8IMA24O1
$7,760.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
OEM assembler kit, Surgelogic, 240kA, 600Y/347 VAC, 3 phase, 4 wire, SPD type 1
Additional Information
Connections - Terminals:
lugs AWG 12...AWG 2 aluminium/copper 4 N.m
Range Of Product:
Surgelogic
[Uc] Maximum Continuous Operating Voltage:
420 V
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Standards:
UL 1449:ed. 4 || CSA C22.2 No 8:1986 || UL 96A:ed. 12 || UL 1283 || IEC 61643-1
Short-Circuit Protection:
200 kA
Wiring Configuration:
4-wire
Nominal Discharge Current:
20 kA
Phase:
3 phase
Depth:
92.7 mm
Nema Degree Of Protection:
NEMA 1
Product Or Component Type:
surge protection device
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Surge Current:
240 kA per phase
Provided Equipment:
alarm enable/disable switch || diagnostic display || backplane || cables
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Short Name:
IMA
[Ue] Rated Operational Voltage:
600Y/347 V AC
