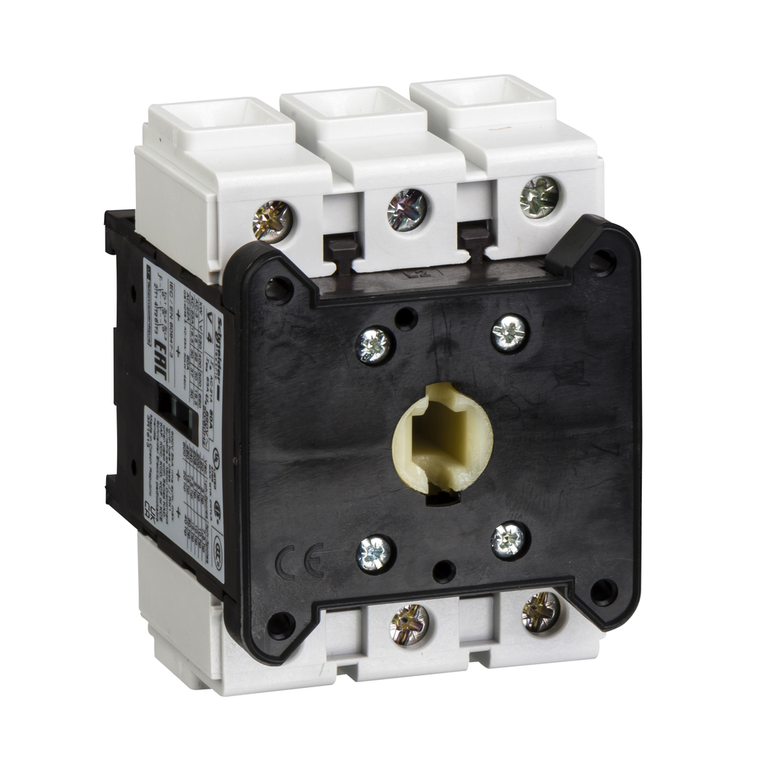

Schneider Electric V3 Switch body,TeSys Control,3 poles,63A
V3 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 63A 690V, it is used in motor applications up to 22kW@400V AC-23. To be equipped with an handle and extension shaft to form a main or emergency stop switch-disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
- Halogen Content Performance:
- Halogen free product
- Device Short Name:
- V
- Fire Resistance:
- 960°C IEC 60695-2-1
- [Ie] Rated Operational Current:
- 41.5 A AC-23 Ue: 400 V
- Contacts Type And Composition:
- 3 NO
- Product Or Component Type:
- switch body
- [Icw] Rated Short-Time Withstand Current:
- 756 A 400 V 1 s
- [Icm] Rated Short-Circuit Making Capacity:
- 2.1 kA 400 V at Ipeak
- [Ithe] Conventional Enclosed Thermal Current:
- 50 A
- Mechanical Durability:
- 30000 cycles
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV
- Protective Treatment:
- TC
- Mechanical Robustness:
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- Tightening Torque:
- power circuit 4-4 N.m screw clamp terminals
- Intermittent Duty Class:
- 30
- Pvc Free:
- Yes
- Warranty:
- 18 months
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Making Capacity:
- 630 A 400 V AC-21A || 630 A 400 V AC-22A || 630 A 400 V AC-23A
- Performance Level:
- high performance
- Mounting Support:
- plate || symmetrical rail
- Sustainable Offer Status:
- Green Premium product
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ith] Conventional Free Air Thermal Current:
- 63 A
- Rated Conditional Short-Circuit Current:
- 10 kA 400 V 63 A aM || 10 kA 400 V 63 A gG
- Toxic Heavy Metal Free:
- Yes
- Rated Operational Power In W:
- 11 kW 230...240 V AC-3) || 22 kW 500 V AC-3) || 22 kW 690 V AC-23A) || 30 kW 500 V AC-23A) || 18.5 kW 400...415 V AC-3) || 18.5 kW 690 V AC-3) || 15 kW 230...240 V AC-23A) || 22 kW 400...415 V AC-23A)
- Network Type:
- DC || AC
- Height:
- 83 mm
- Circularity Profile:
- N/A
- Connections - Terminals:
- power circuit screw clamp terminals 16-16 mm² flexible - with cable end || power circuit screw clamp terminals 25-25 mm² solid
- Depth:
- 65 mm
- Ambient Air Temperature For Operation:
- -20-50°C
- Standards:
- IEC 60947-3
- Environmental Disclosure:
- ENVPEP2211006
- Product Name:
- TeSys VARIO
- Suitability For Isolation:
- yes
- Poles Description:
- 3P
- Net Weight:
- 0.5 kg
- Electrical Durability:
- 30000 cycles AC-21 || 30000 cycles DC-1...5
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Certifications:
- UL || CSA || GL || UKCA
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529
- Weight:
- 0.5 kg
- Country of Origin:
- Czechia
