Schneider Electric VBD2 Switch disconnector,TeSys Control,for ON/OFF,40A,Ø22.5 fixing,for mountingfor mounting on door

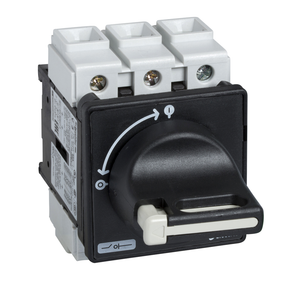

VBD2 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 40A 690V, it is used for main switching in motor applications up to 15kW@400V AC-23. Composed of a V2 switch body, black padlockable handle, and black 60x60mm front plate. For door mounting, with a central fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
- Intermittent Duty Class:
- 30
- Pvc Free:
- Yes
- Handle Colour:
- black
- Suitability For Isolation:
- yes
- Ambient Air Temperature For Operation:
- -20-50°C
- Toxic Heavy Metal Free:
- Yes
- Warranty:
- 18 months
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz
- Mercury Free:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV
- Product Certifications:
- CSA || CCC || GL || UL || UKCA
- Eu Rohs Directive:
- Compliant with Exemptions
- Rotary Handle Padlocking:
- 1 to 3 padlocks 4-8 mm
- Fire Resistance:
- 960°C IEC 60695-2-1
- [Icm] Rated Short-Circuit Making Capacity:
- 1 kA 400 V at Ipeak
- [Ith] Conventional Free Air Thermal Current:
- 40 A
- Fixing Mode:
- hole 22.5 mm handle
- Base Dimension:
- 60 x 60 mm
- Performance Level:
- high performance
- Contacts Type And Composition:
- 3 NO
- Making Capacity:
- 400 A 400 V AC-21A || 400 A 400 V AC-22A || 400 A 400 V AC-23A
- Connections - Terminals:
- power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end
- Protective Treatment:
- TC
- Network Type:
- DC || AC
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP2211006
- Rated Conditional Short-Circuit Current:
- 10 kA 400 V 50 A aM || 10 kA 400 V 50 A gG
- Mechanical Durability:
- 100000 cycles
- Standards:
- IEC 60947-3
- Net Weight:
- 0.215 kg
- Control Type:
- rotary handle
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Short Name:
- VBD
- Mounting Support:
- handle door || switch door
- Rated Operational Power In W:
- 11 kW 690 V AC-3) || 15 kW 690 V AC-23A) || 11 kW 400...415 V AC-3) || 15 kW 500 V AC-3) || 18.5 kW 500 V AC-23A) || 5.5 kW 230...240 V AC-3) || 7.5 kW 230...240 V AC-23A) || 15 kW 400...415 V AC-23A)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Ithe] Conventional Enclosed Thermal Current:
- 32 A
- Range:
- TeSys
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Weight:
- 0.215 kg
- Electrical Durability:
- 100000 cycles AC-21 || 30000 cycles DC-1...5
- Breaking Capacity:
- 320 A 400 V AC-21A) || 320 A 400 V AC-22A) || 320 A 400 V AC-23A)
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP65
- Product Or Component Type:
- switch disconnector
- Compatibility Code:
- main switch disconnector
- Product Name:
- TeSys VARIO
