Schneider Electric VBF4 Switch disconnector,TeSys Control,for ON/OFF,80A,4 screws fixing,for mountingfor mounting on door
Schneider Electric
$329.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric VBF4 Switch disconnector,TeSys Control,for ON/OFF,80A,4 screws fixing,for mountingfor mounting on door

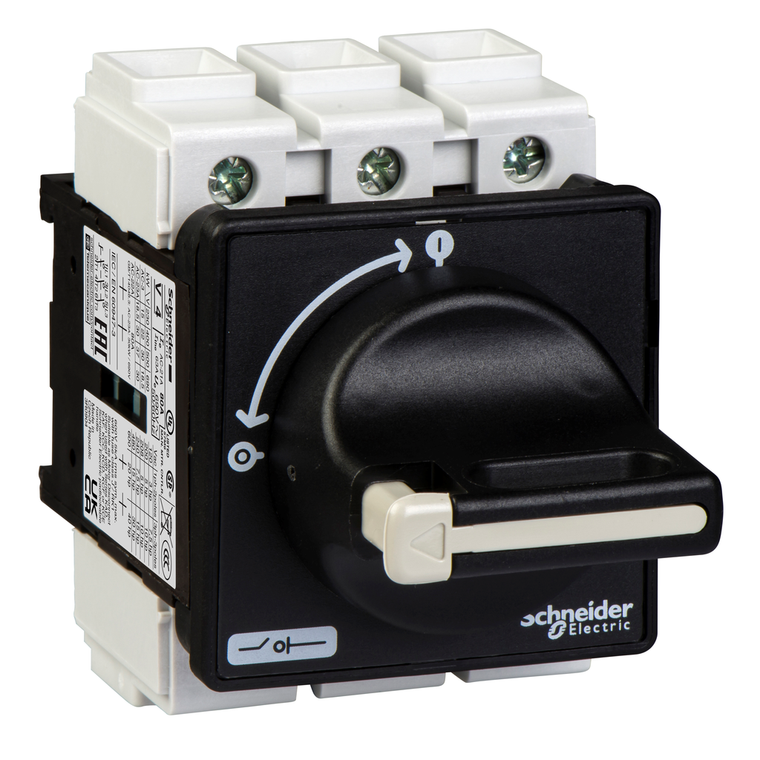

VBF4 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 30kW@400V AC-23. For door mounting with 4 screw fixing, it provides a black & grey operator with IP65 protection. VBF4 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 30kW@400V AC-23. It consists of a V4 Vario switch body and a padlockable black & grey operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V4 and a black & grey operator, for main switching, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ4), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).
- Poles Description:
- 3P
- [Ith] Conventional Free Air Thermal Current:
- 80 A
- Eu Rohs Directive:
- Compliant with Exemptions
- Base Dimension:
- 60 x 60 mm
- Tightening Torque:
- power circuit 4-4 N.m screw clamp terminals
- Net Weight:
- 0.56 kg
- Device Short Name:
- VBF
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP65
- Handle Colour:
- black
- Product Certifications:
- CSA || GL || UL || CCC || UKCA
- [Icw] Rated Short-Time Withstand Current:
- 960 A 400 V 1 s
- Fixing Mode:
- by 4 screws handle
- Marking:
- 0 - 1
- Warranty:
- 18 months
- Suitability For Isolation:
- yes
- Network Type:
- AC || DC
- Control Type:
- rotary handle
- Protective Treatment:
- TC
- Sustainable Offer Status:
- Green Premium product
- Range:
- TeSys
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ithe] Conventional Enclosed Thermal Current:
- 63 A
- Rotary Handle Mounting Style:
- direct
- Product Or Component Type:
- switch disconnector
- Compatibility Code:
- main switch disconnector
- Country of Origin:
- Czechia
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mechanical Durability:
- 30000 cycles
- Circularity Profile:
- N/A
- Performance Level:
- high performance
- [Icm] Rated Short-Circuit Making Capacity:
- 2.1 kA 400 V at Ipeak
- Rated Operational Power In W:
- 18.5 kW 690 V AC-3) || 15 kW 230...240 V AC-3) || 22 kW 400...415 V AC-3) || 30 kW 500 V AC-3) || 30 kW 690 V AC-23A) || 37 kW 500 V AC-23A) || 18.5 kW 230...240 V AC-23A) || 30 kW 400...415 V AC-23A)
- [Ie] Rated Operational Current:
- 57 A AC-23 Ue: 400 V
- Mechanical Robustness:
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- Contacts Type And Composition:
- 3 NO
- Making Capacity:
- 800 A 400 V AC-21A || 800 A 400 V AC-22A || 800 A 400 V AC-23A
- Environmental Disclosure:
- ENVPEP2211006
- Rated Conditional Short-Circuit Current:
- 10 kA 400 V 80 A aM || 10 kA 400 V 80 A gG
- Product Name:
- TeSys VARIO
- Weight:
- 0.56 kg
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Handle Front Plate Colour:
- black
- Standards:
- IEC 60947-3
- Rotary Handle Padlocking:
- 1 to 3 padlocks 4-8 mm
- Ambient Air Temperature For Operation:
- -20-50°C
- Device Composition:
- switch || handle
