Schneider Electric XALD351H29H7 Control Station Xald Three Functions 1 N

Schneider Electric XALD351H29H7 Control Station Xald Three Functions 1 N

Schneider Electric
SKU:
XALD351H29H7
|
UPC:
3606480502712
$143.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

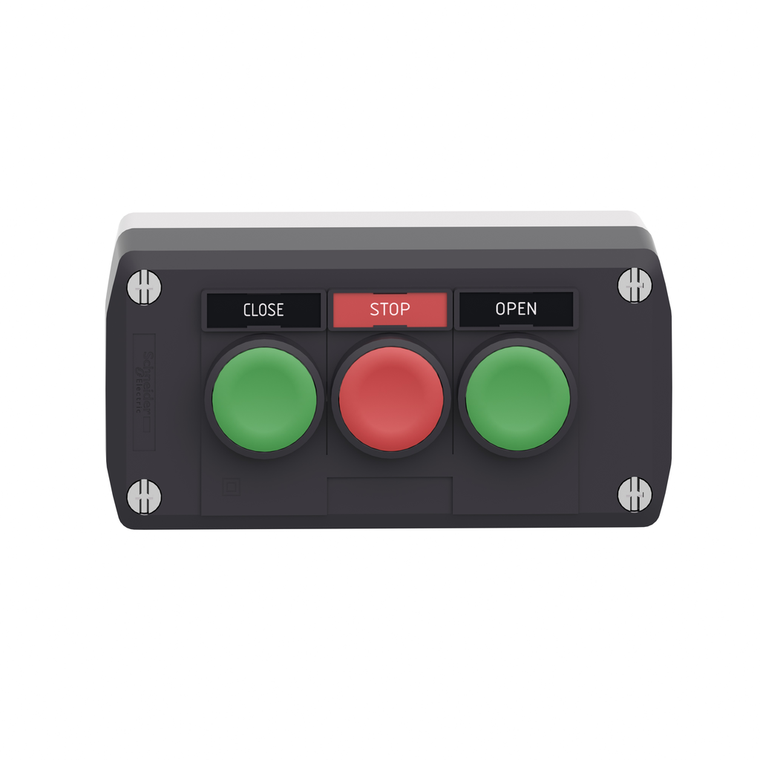

This Harmony XALD, is a complete ready to use control station for three functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, IP67, IP69, IP69K, making it ideal for operation in harsh environments. This control station provides a good resistance to chemical agents, thanks to its electrical double insulation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides a polycarbonate double insulated enclosure with a light grey (RAL 7035) base of enclosure and a dark grey (RAL 7016) cover. This control station is ideally suited for industrial, buildings, and infrastructure applications. This control station complies with IEC, UL, CSA standards, as well as CE marking. It is also UL listed and CSA certified. It is compatible with the Harmony XB5 range of control and signaling units, providing a wide choice of circular and square heads
Additional Information
Colour Of Base Of Enclosure:
light grey RAL 7035)
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Mechanical Durability:
10000000 cycles
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Standards:
IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || IEC 60947-5-5
Ip Degree Of Protection:
IP66 IEC 60529 || IP69 || IP69K || IP67
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Electrical Shock Protection Class:
class II IEC 60536
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Ambient Air Temperature For Storage:
-40-70 °C
Reach Free Of Svhc:
Yes
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Product Or Component Type:
complete control station
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Environmental Disclosure:
ENVPEP1806010EN
Contacts Material:
silver alloy (Ag/Ni)
Product Certifications:
CSA || UL Listed
Reach Regulation:
Free of Substances of Very High Concern above the threshold
[Ie] Rated Operational Current:
6 A 120 V, AC-15, A600 IEC 60947-5-1 || 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
Ambient Air Temperature For Operation:
-40-70 °C
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Sustainable Offer Status:
Green Premium product
Circularity Profile:
ENVEOLI1806010EN
Ik Degree Of Protection:
IK03 IEC 62262
Rohs Exemption Information:
Yes
Protective Treatment:
TH
Material:
polycarbonate
Product Destination:
for XB5 Ø 22 mm control and signalling units
Vibration Resistance:
5 gn 12-500 Hz)IEC 60068-2-6
Device Short Name:
XALD
Cable Entry:
2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Toxic Heavy Metal Free:
Yes
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty:
18 months
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Range Of Product:
Harmony XALD
Mercury Free:
Yes
China Rohs Regulation:
X
Control Station Application:
three functions
Colour Of Cover:
dark grey RAL 7016)
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
