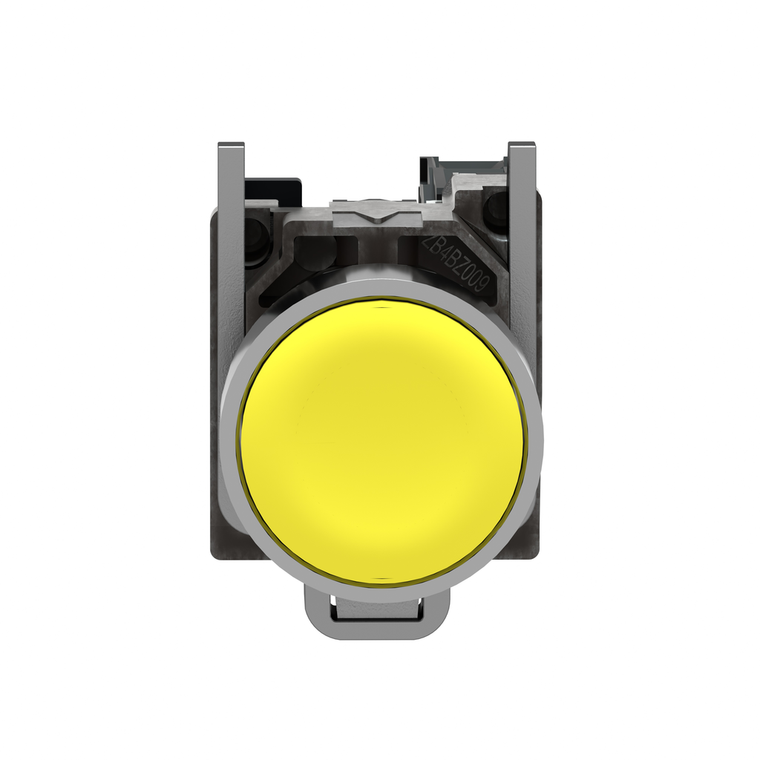

Schneider Electric XB4BA51 Pushbutton

Schneider Electric XB4BA51 Pushbutton

Schneider Electric
SKU:
XB4BA51
|
UPC:
3389110118384
Availability:
Factory stock
$28.30
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB4 modular yellow push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Additional Information
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Terminals Description Iso N°1:
(13-14)NO
Protective Treatment:
TH
Product Certifications:
UL Listed || DNV || LROS (Lloyds register of shipping) || BV || GL || CSA
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Overvoltage Category:
class I IEC 60536
Sale Per Indivisible Quantity:
1
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Contact Operation:
slow-break
Contacts Type And Composition:
1 NO
Standards:
UL 508 || IEC 60947-1 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-5 || IEC 60947-5-1 || JIS C8201-1
Rohs Exemption Information:
Yes
Mechanical Durability:
10000000 cycles
Fixing Collar Material:
zamak
Environmental Disclosure:
ENVPEP1808008EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Warranty:
18 months
Mounting Diameter:
22 mm
Net Weight:
0.08 kg
Toxic Heavy Metal Free:
Yes
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Depth:
52 mm
Operating Travel:
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Contacts Usage:
standard contacts
Height:
47 mm
Bezel Material:
chromium plated metal
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Ambient Air Temperature For Operation:
-40-70 °C
Positive Opening:
without
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Operating Force:
3.8 N NO changing electrical state
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Width:
30 mm
Head Type:
standard
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Contacts Material:
silver alloy (Ag/Ni)
Range Of Product:
Harmony XB4
Reach Regulation:
Free of Substances of Very High Concern above the threshold
China Rohs Regulation:
X
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Type Of Operator:
spring return
Circularity Profile:
ENVEOLI1808008EN
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Reach Free Of Svhc:
Yes
Device Presentation:
complete product
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Or Component Type:
push-button
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-40-70 °C
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Shape Of Signaling Unit Head:
round
Device Short Name:
XB4
Mercury Free:
Yes
Operator Profile:
yellow flush, unmarked
Ik Degree Of Protection:
IK06 IEC 50102
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
