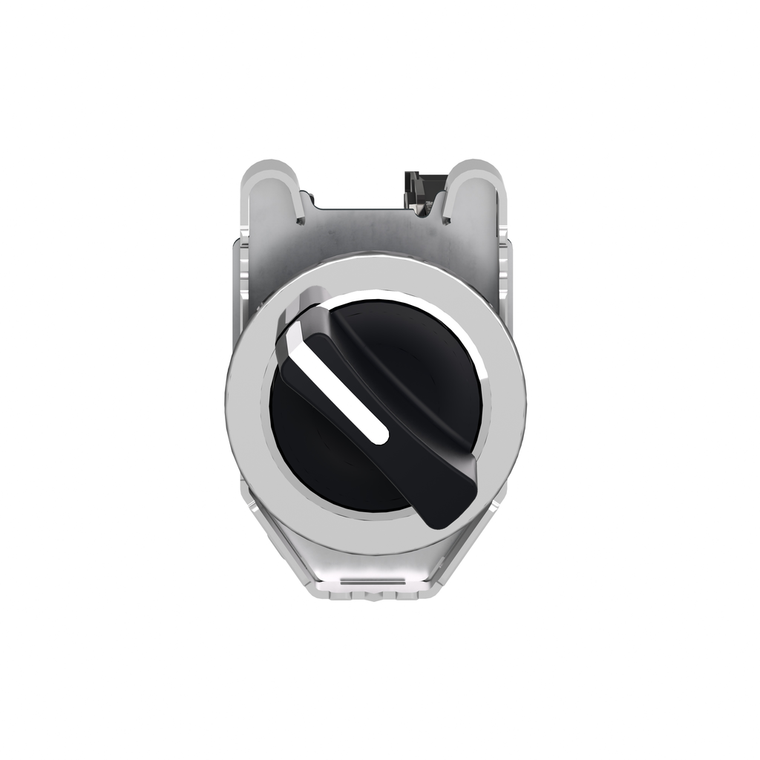

Schneider Electric XB4FD21 Flush Ssw 2Pos 1No

Schneider Electric XB4FD21 Flush Ssw 2Pos 1No

Schneider Electric
SKU:
XB4FD21
|
UPC:
3606489580155
Availability:
Factory stock
$37.71
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This flush mounted selector switch is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a black standard handle with 2 positions 90 degree stay put. The contact type is 1NO slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is chromium plated and the fixing collar is zamak. The weight of this selector switch is 95 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
Additional Information
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Type Of Operator:
stay put
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Device Presentation:
complete product
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Rohs Exemption Information:
Yes
Width:
36.6 mm
Standards:
CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Positive Opening:
without
Operator Profile:
black standard handle
Head Type:
built-in-flush
Mechanical Durability:
1000000 cycles
Protective Treatment:
TH
Circularity Profile:
ENVEOLI1808008EN
Operator Position Information:
2 positions 90°
Vibration Resistance:
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Fixing Collar Material:
zamak
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2
Overvoltage Category:
class I IEC 60536
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Depth:
70 mm
Device Mounting:
built-in
Sustainable Offer Status:
Green Premium product
Sale Per Indivisible Quantity:
1
Warranty:
18 months
Shape Of Signaling Unit Head:
round
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Contacts Usage:
standard contacts
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Fixing Mode:
by screws
Environmental Disclosure:
ENVPEP1808008EN
Product Or Component Type:
selector switch
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Reach Free Of Svhc:
Yes
China Rohs Regulation:
X
Toxic Heavy Metal Free:
Yes
Range Of Product:
Harmony XB4
Mercury Free:
Yes
Terminals Description Iso N°1:
(13-14)NO
Contacts Material:
silver alloy (Ag/Ni)
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Contact Operation:
slow-break
Torque Value:
0.14 N.m NO changing electrical state
Bezel Material:
chromium plated metal
Net Weight:
0.095 kg
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Height:
47 mm
Ambient Air Temperature For Operation:
-40-70 °C
Product Certifications:
UL Listed || CSA || CCC || EAC
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Contacts Type And Composition:
1 NO
Device Short Name:
XB4F
Fixing Center:
40 x 50 mm 1...6 mm thick panel)
Ik Degree Of Protection:
IK04 conforming to IEC 50102
Ambient Air Temperature For Storage:
-40-70 °C
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Mounting Diameter:
30.5 mm
