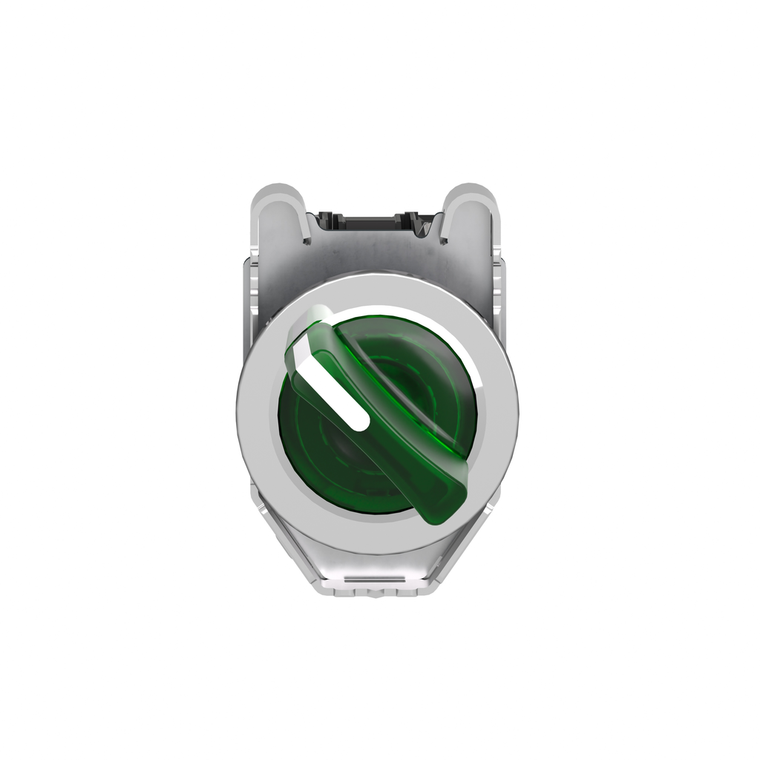

Schneider Electric XB4FK123G5 Illuminated selector switch, Harmony XB4, metal, green handle, 30mm, universal LED, 2 positions, 1NO + 1NC, 110...120V AC

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB4FK123G5 Illuminated selector switch, Harmony XB4, metal, green handle, 30mm, universal LED, 2 positions, 1NO + 1NC, 110...120V AC

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4FK123G5

UPC:

MPN:

XB4FK123G5

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Contact Operation:

slow-break

Device Presentation:

complete product

Product Or Component Type:

illuminated selector switch

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Country of Origin:

France

Ik Degree Of Protection:

IK04 conforming to IEC 50102

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Device Short Name:

XB4F

Current Consumption:

14 mA

Rohs Exemption Information:

Yes

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Supply Voltage Limits:

100-132 V AC

Electromagnetic Emission:

class B IEC 55011

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Net Weight:

0.151 kg

Ambient Air Temperature For Operation:

-40-70°C

Signaling Type:

steady

Operating Torque:

0.14 N.m NO changing electrical state

Sale Per Indivisible Quantity:

1

Electrical Shock Protection Class:

class I IEC 60536

Bulb Base:

integral LED

Mechanical Durability:

1000000 cycles

China Rohs Regulation:

X

Contacts Usage:

standard contacts

Depth:

69.5 mm

Device Mounting:

built-in 30.75 mm +/- 0.25 mm

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Contacts Type And Composition:

1 NO + 1 NC

Product Certifications:

UL Listed || CSA || CCC || EAC

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

Bezel Material:

chromium plated metal

Height:

53 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mercury Free:

Yes

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Fixing Mode:

by screws 0.8 N.m 0.8...1.2 Nm)

Ambient Air Temperature For Storage:

-40-70°C

Mounting Diameter:

30.5 mm

Surge Withstand:

1 kV IEC 61000-4-5

Standards:

CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1

Light Source:

universal LED

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Operator Position Information:

2 positions 90°

Positive Opening:

with NC contact IEC 60947-5-1 appendix K

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)
