Schneider Electric XB4FK133G5 Illuminated selector switch, Harmony XB4, metal, green handle, 30mm, universal LED, 3 positions, 1NO + 1NC, 110...120V AC
Schneider Electric
$119.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

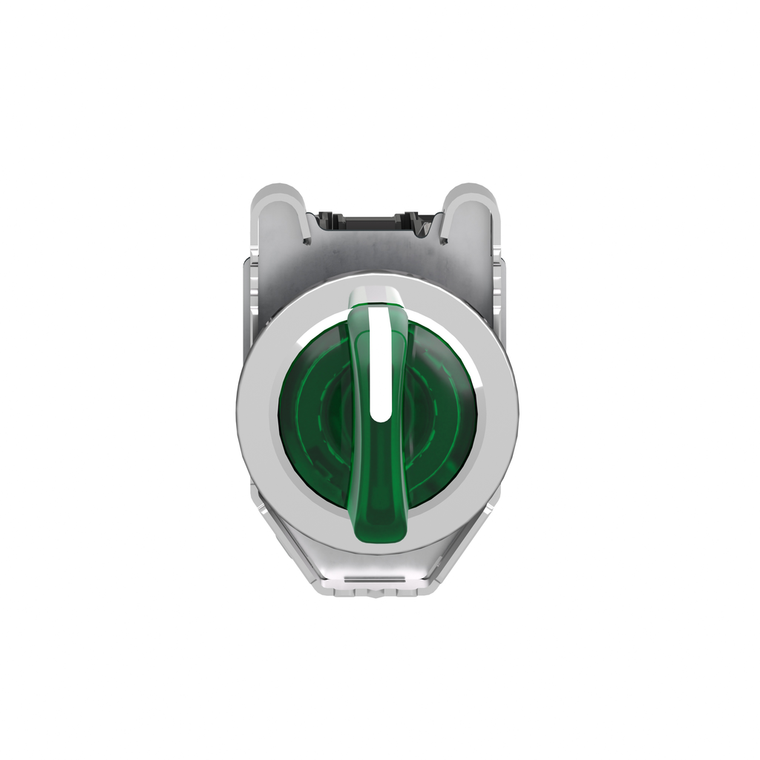

Schneider Electric XB4FK133G5 Illuminated selector switch, Harmony XB4, metal, green handle, 30mm, universal LED, 3 positions, 1NO + 1NC, 110...120V AC
This flush mounted illuminated selector switch is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 110 V to 120 V AC. The source of light is a universal LED. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a green standard handle with 3 positions ± 45 degree stay put. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is chromium plated and the fixing collar is zamak. The weight of this selector switch is 151 grams, height is 53 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40-70°C
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Width:
- 36.6 mm
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Light Source:
- universal LED
- Ik Degree Of Protection:
- IK04 conforming to IEC 50102
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator:
- stay put
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Weight:
- 0.151 kg
- Ambient Air Temperature For Operation:
- -40-70°C
- Bulb Base:
- integral LED
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Shape Of Signaling Unit Head:
- round
- Depth:
- 69.5 mm
- Device Mounting:
- built-in 30.75 mm +/- 0.25 mm
- Head Type:
- built-in-flush
- Signaling Type:
- steady
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Device Short Name:
- XB4F
- Rohs Exemption Information:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55°C 0.1 m
- Fixing Mode:
- by screws 0.8 N.m 0.8...1.2 Nm)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- [Us] Rated Supply Voltage:
- 110...120 V AC 50/60 Hz
- Sale Per Indivisible Quantity:
- 1
- Terminals Description Iso N°1:
- (13-14)NO || (21-22)NC
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range Of Product:
- Harmony XB4
- Operator Profile:
- green standard handle
- Protective Treatment:
- TH
- Product Or Component Type:
- illuminated selector switch
- Mounting Diameter:
- 30.5 mm
- Net Weight:
- 0.151 kg
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Operator Position Information:
- 3 positions +/- 45°
- Contacts Usage:
- standard contacts
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Supply Voltage Limits:
- 100-132 V AC
- Mechanical Durability:
- 500000 cycles
- Contacts Type And Composition:
- 1 NO + 1 NC
- Operating Torque:
- 0.14 N.m NO changing electrical state
