Schneider Electric XB5AA3351C0 Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric

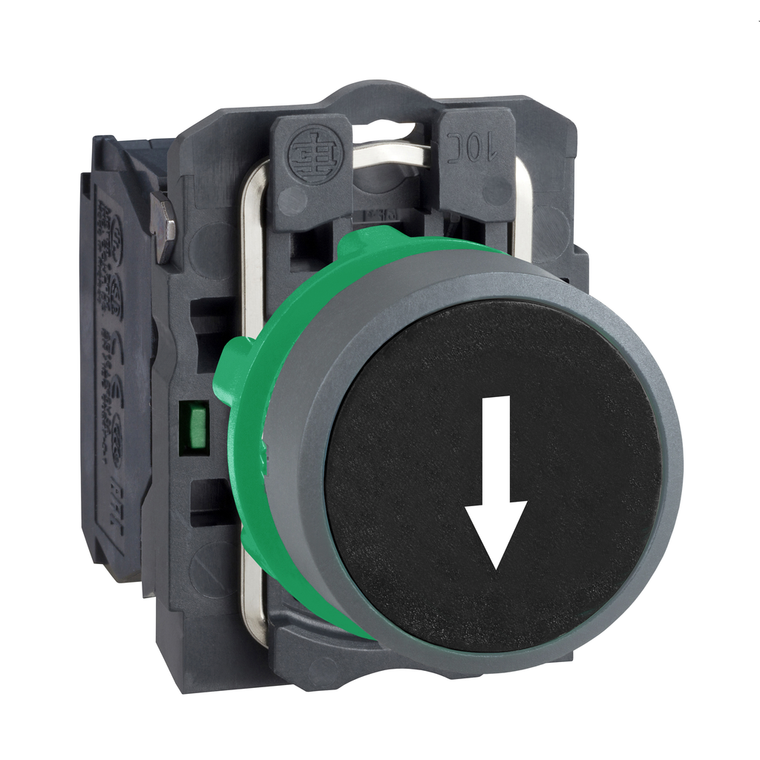

Schneider Electric XB5AA3351C0 Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AA3351C0

UPC:

3.60649E+12

MPN:

Condition:

New

Range Of Product:

Harmony XB5

Sale Per Indivisible Quantity:

1

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mechanical Durability:

10000000 cycles

Electrical Durability:

1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2

Height:

42 mm

Gcr Bridge:

XB5AACUST06

Compatibility Code:

XB5

Bezel Material:

plastic colour plated grey

Operator Profile:

black flush, down arrow white)

Terminals Description Iso N°1:

(13-14)NO

Contacts Material:

silver alloy (Ag/Ni)

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Net Weight:

0.037 kg

Ambient Air Temperature For Operation:

-40-70 °C

Mercury Free:

Yes

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Overvoltage Category:

class II IEC 60536

Contact Operation:

slow-break

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Standards:

CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-1 || UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || JIS C8201-1

Protective Treatment:

TH

Rohs Exemption Information:

Yes

Product Or Component Type:

push-button

Mounting Diameter:

22 mm

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Contacts Usage:

standard contacts

Product Certifications:

BV || GL || RINA || CSA || DNV || LROS (Lloyds register of shipping) || UL Listed

Depth:

52 mm

Customizable:

1

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

China Rohs Regulation:

X

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Head Type:

standard

Device Short Name:

XB5

Width:

30 mm

Positive Opening:

without

Toxic Heavy Metal Free:

Yes

Reach Free Of Svhc:

Yes

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Customizable:

no

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Operating Force:

3.8 N NO changing electrical state

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ambient Air Temperature For Storage:

-40-70 °C

Contacts Type And Composition:

1 NO

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Operating Travel:

2.6 mm NO changing electrical state) || 4.3 mm total travel)

Ik Degree Of Protection:

IK03 IEC 50102

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Presentation:

complete product

Type Of Operator:

spring return

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Fixing Collar Material:

plastic

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Shape Of Signaling Unit Head:

round
