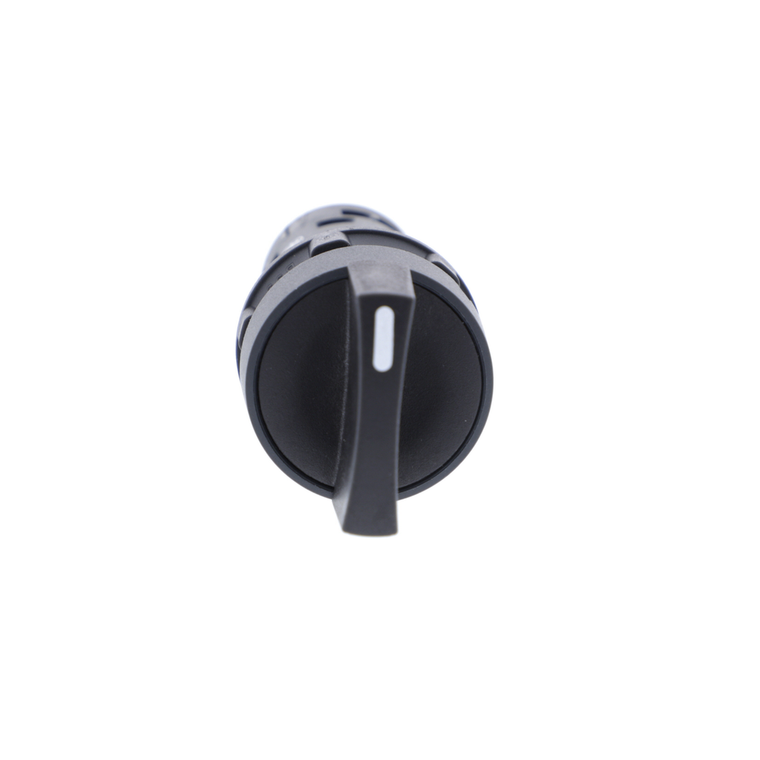

Schneider Electric XB7ND25 Selector -2Pos-1No And 1Nc Pack of 10

Schneider Electric XB7ND25 Selector -2Pos-1No And 1Nc

Schneider Electric
SKU:
XB7ND25
|
UPC:
3606480470257
Availability:
Factory stock
$24.99
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB7, monolithic black selector switch has 2 positions, operates with a stay-put mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to give your machine multiple different inputs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Additional Information
Net Weight:
0.026 kg
Device Mounting:
fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
Short-Circuit Protection:
4 A cartridge fuse gG IEC 60947-5-1
Electrical Durability:
1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
Mounting Diameter:
22 mm
Cad Overall Height:
29 mm
Contacts Type And Composition:
1 NO + 1 NC
Ambient Air Temperature For Storage:
-40-70 °C
Ambient Air Temperature For Operation:
-25-70 °C
Operator Position Information:
2 positions 90°
Shape Of Signaling Unit Head:
round
Nema Degree Of Protection:
NEMA 12 UL 50 E || NEMA 3 UL 50 E
Shape Of Screw Head:
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Electrical Reliability:
λ < 10exp(-6) 17 V 5 mA IEC 60947-5-4
Fixing Center:
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Toxic Heavy Metal Free:
Yes
Sale Per Indivisible Quantity:
10
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
Device Short Name:
XB7
Range Of Product:
Harmony XB7
Operator Profile:
black standard handle
Fixing Mode:
fixing nut 2-2.4 N.m
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Environmental Disclosure:
ENVPEP1805012EN
Cad Overall Width:
29 mm
Standards:
JIS C8201-5-1 || IEC 60947-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
Positive Opening:
with IEC 60947-5-1 appendix K
[Ie] Rated Operational Current:
0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
Electrical Shock Protection Class:
class II IEC 61140
Reach Free Of Svhc:
Yes
Protective Treatment:
TH
Reach Regulation:
Free of Substances of Very High Concern above the threshold
China Rohs Regulation:
X
Product Or Component Type:
selector switch
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mechanical Durability:
300000 cycles
Type Of Operator:
stay put
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 60947-1
Ip Degree Of Protection:
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Mercury Free:
Yes
Cad Overall Depth:
68.5 mm
Shock Resistance:
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Circularity Profile:
ENVEOLI1805012EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Contact Operation:
slow-break
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
